Bellows seal cage control valve ARL-DN10-600-3

Bellows seal cage control valve ARL-DN10-600-3

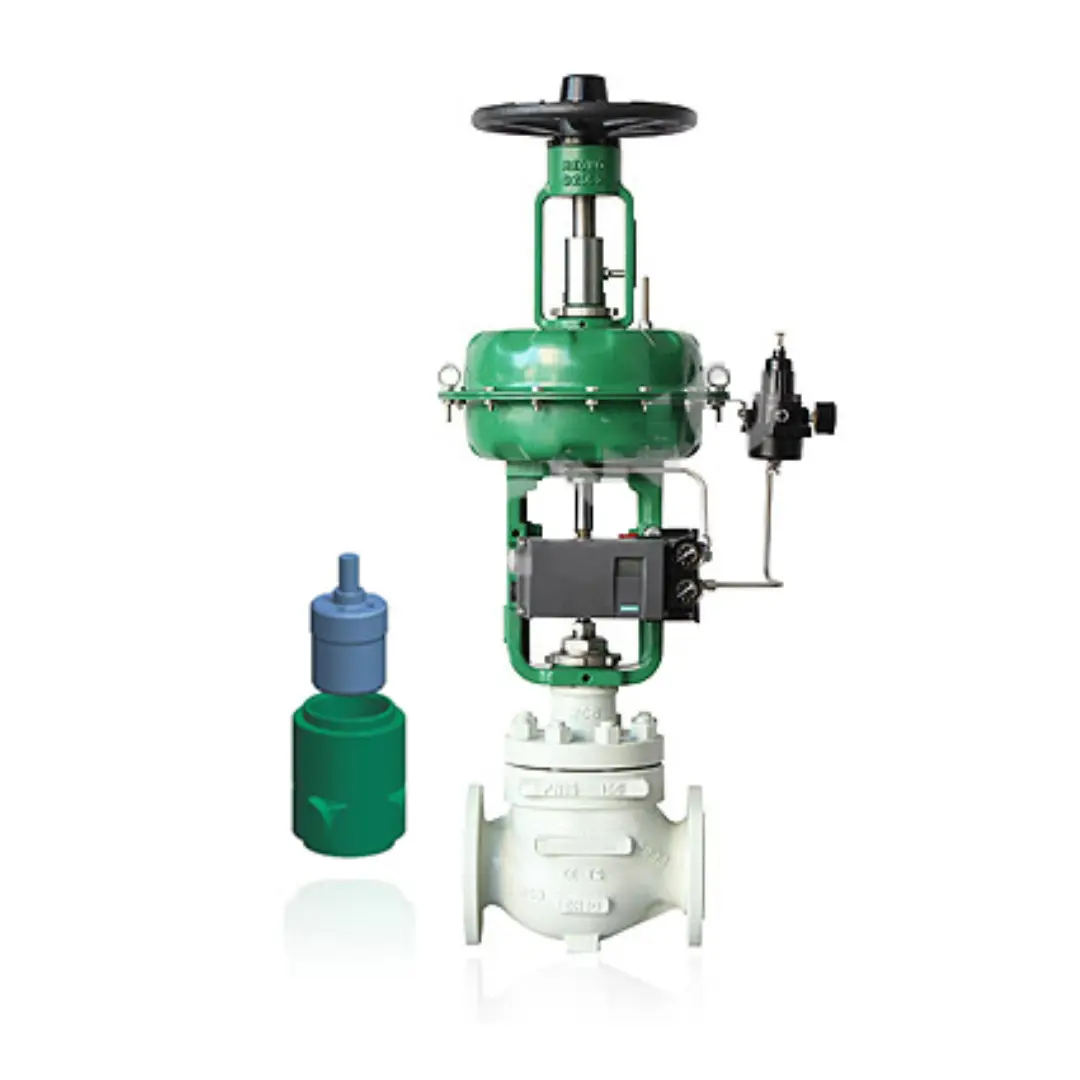

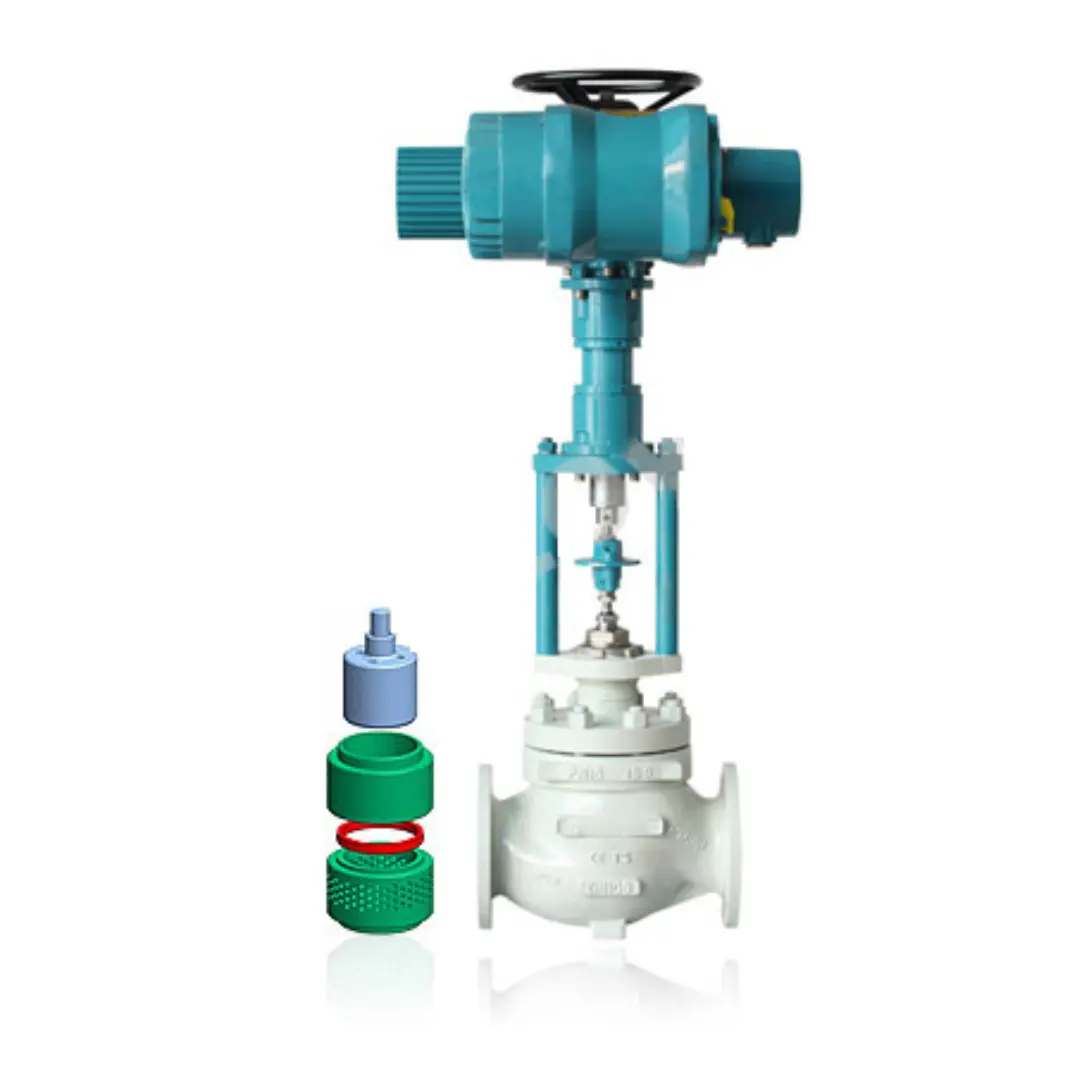

The Bellows seal cage control valve ARL-DN10-600-3 features a cage guided structure and a pressure balanced plug, making it ideal for applications with relatively high differential pressure. By utilizing a balanced seal ring, this design converts the traditional cage double-seat structure into a cage single-seat structure to significantly enhance shut-off performance. The double sealing structure of the bellows and packing at the bonnet thoroughly eliminates the possibility of media leaking to the outside, ensuring safe handling of poisonous or precious media. Furthermore, the pressure balanced plug structure ensures the Bellows seal cage control valve ARL-DN10-600-3 operates with low opening and closing forces, requiring minimal actuator thrust while providing excellent stability and maintenance efficiency.

Key Features:

• Cage guided structure with a large guiding area and compact design
• Pressure balanced plug for low opening/closing force and minimal actuator thrust
• Balanced seal ring structure to enhance shut-off class
• Double sealing structure (bellows and packing) at the bonnet to eliminate leakage
• High allowable differential pressure with good sealing performance and stability
• Realizes fast on-line replacement of trims to save manpower and maintenance time

Technical Specifications:

• Body type: straight-through type / angle type
• Size: DN10-600 (3/8”-24”) / DN40-400 (1.5”-16”)
• Bonnet type: standard, heat dissipation, cryogenic, bellows type
• Flow characteristic: equal percentage, linear, quick open
• Pressure class: PN1.6, 4.0, 6.3Mpa (ANSI 150, 300, 600LB)
• Leakage class: ASME B16.104 V (standard type metal seat), ASME B16.104 VI (shut-off soft seat)
• Pipe connection: flange type, butt welding type
• Applicable temperature range: -30°C ~ 260°C
• Actuator type: pneumatic diaphragm actuator, pneumatic piston actuator, electric actuator
