Electric 3 Way Ball Valve

Electric 3 Way Ball Valve

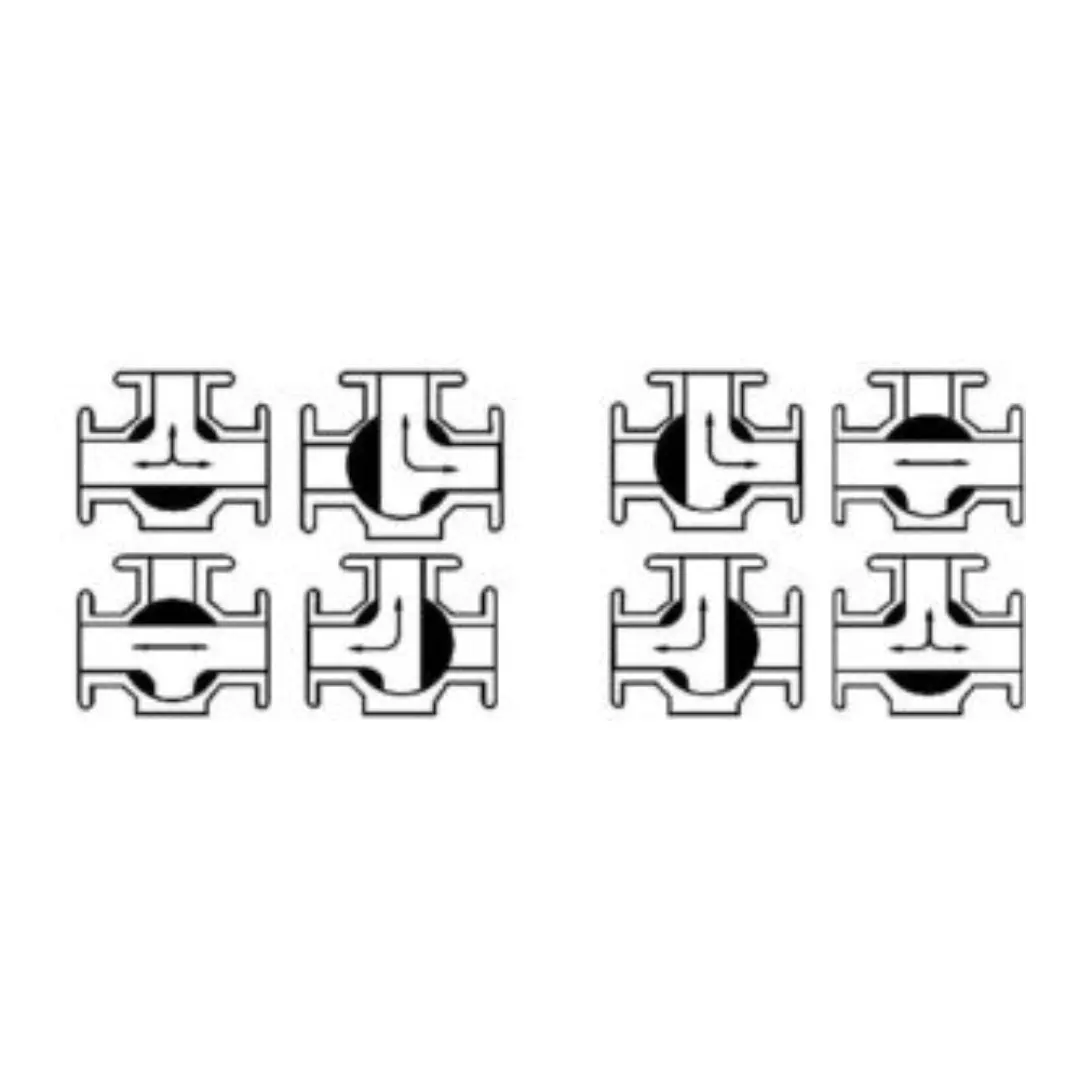

This is a 3-way Screw End Ball Valve of the Direct Mounting Type, featuring an ISO 5211 pad for direct actuation. It is available in full port sizes ranging from 1/4″ to 8″ and can be configured with an L-port or T-port. The valve includes a real locking function and is TA-LUFT Approved. It include Precision Manufacturing, Safety Designs, Automation Ready, Operational Safety, Versatile Standards.

Key Features:

• Precision Manufacturing: Utilizes lost-wax precision casting.
• Safety Designs: Features a fire-safe design approved to API 607 and a blow-out proof stem.
• Automation Ready: Includes a built-in ISO 5211 direct mounting pad for easy automation.
• Operational Safety: Equipped with anti-static devices for the ball-stem-body.
• Versatile Standards: Supports a variety of thread standards and TA-LUFT design.

Technical Specifications:

• Body Materials: CF8M, CF8, WCB, SS316L, SS316, SS304, or SS304L.
• Seat Materials: TFM 1600, PTFE, R-PTFE, or PEEK.
• Size Range: 1/2″ to 8″.
• Pressure Ratings: ASME Class 150/300 (PN10 to PN40 covered).
• Medium Compatibility: Suitable for gas, water, oil, etc.
• Electric Actuator: Available in ON-OFF type or adjustable type.
• Control Signals: 4-20 mADC, 0-5 VDC, or 0-10 VDC.
• Power Supply: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, or 380 VAC 50/60 Hz ±10%.
• Optional Features: Explosion-proof actuator (Exd II CT5, Exd II BT5).

Standard Specifications

Dimensions (1.6Mpa)

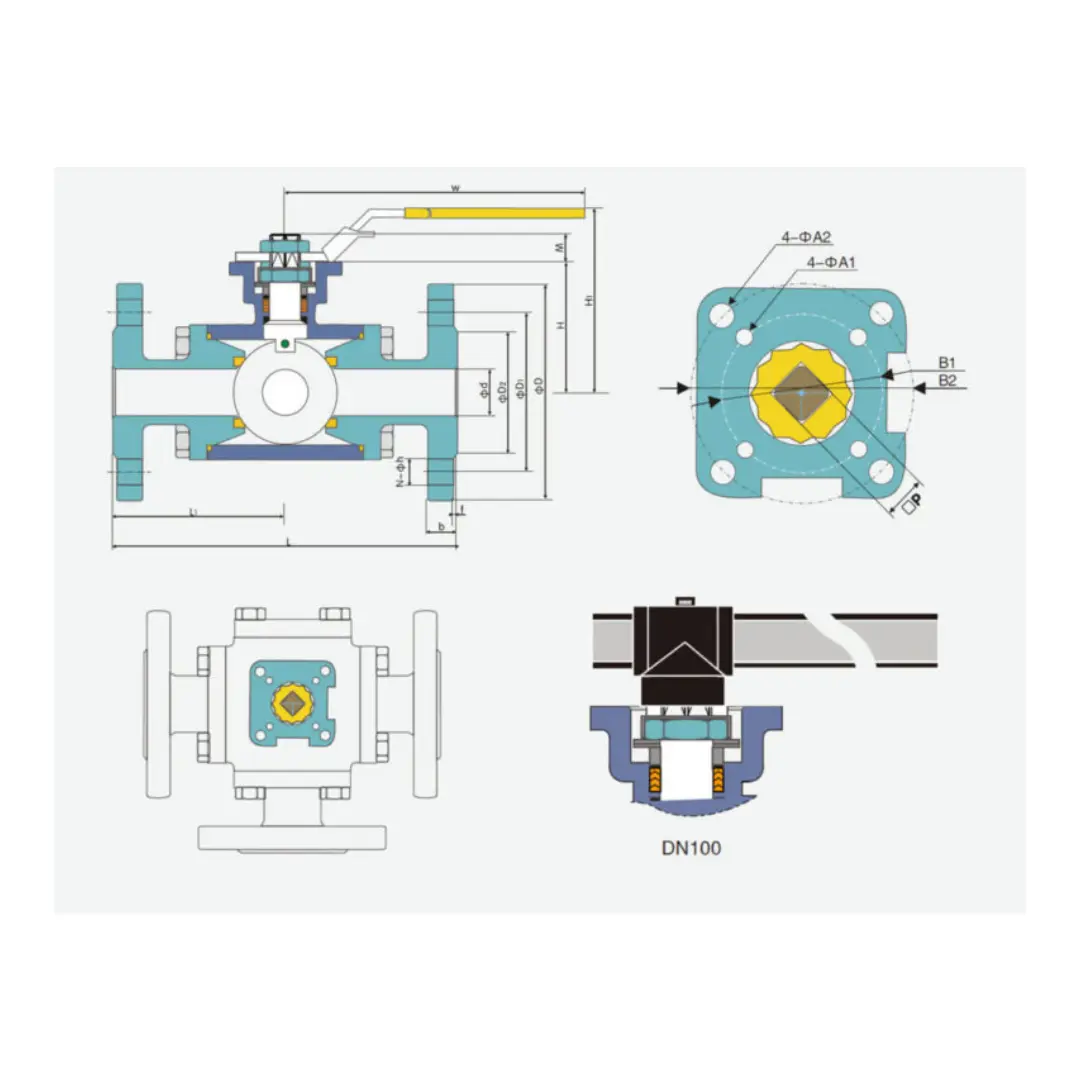

Refer to flow diagrams and technical drawings.

Dimensions (2.5Mpa)

Refer to flow diagrams and technical drawings.

Dimensions (4.0Mpa)

Refer to flow diagrams and technical drawings.
