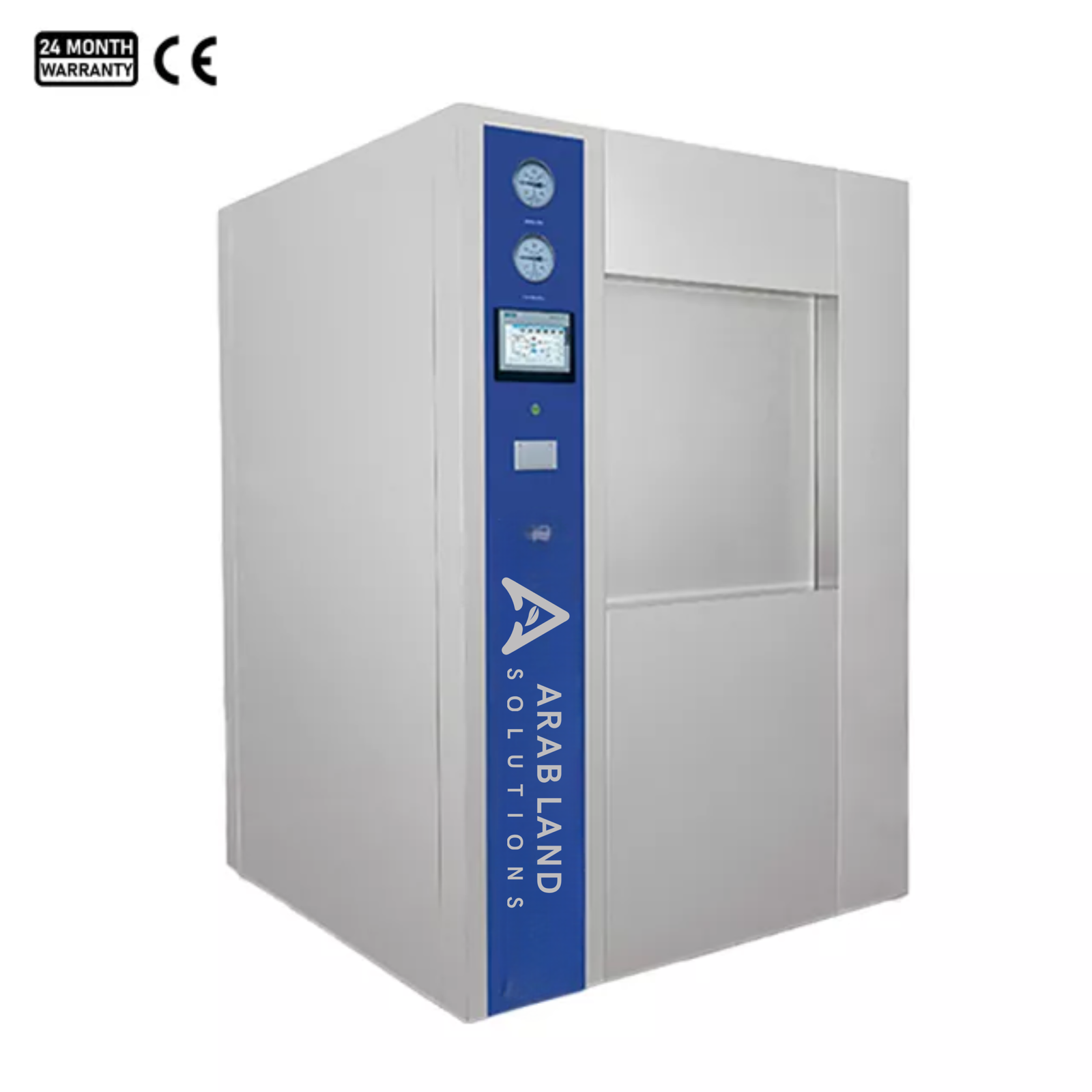

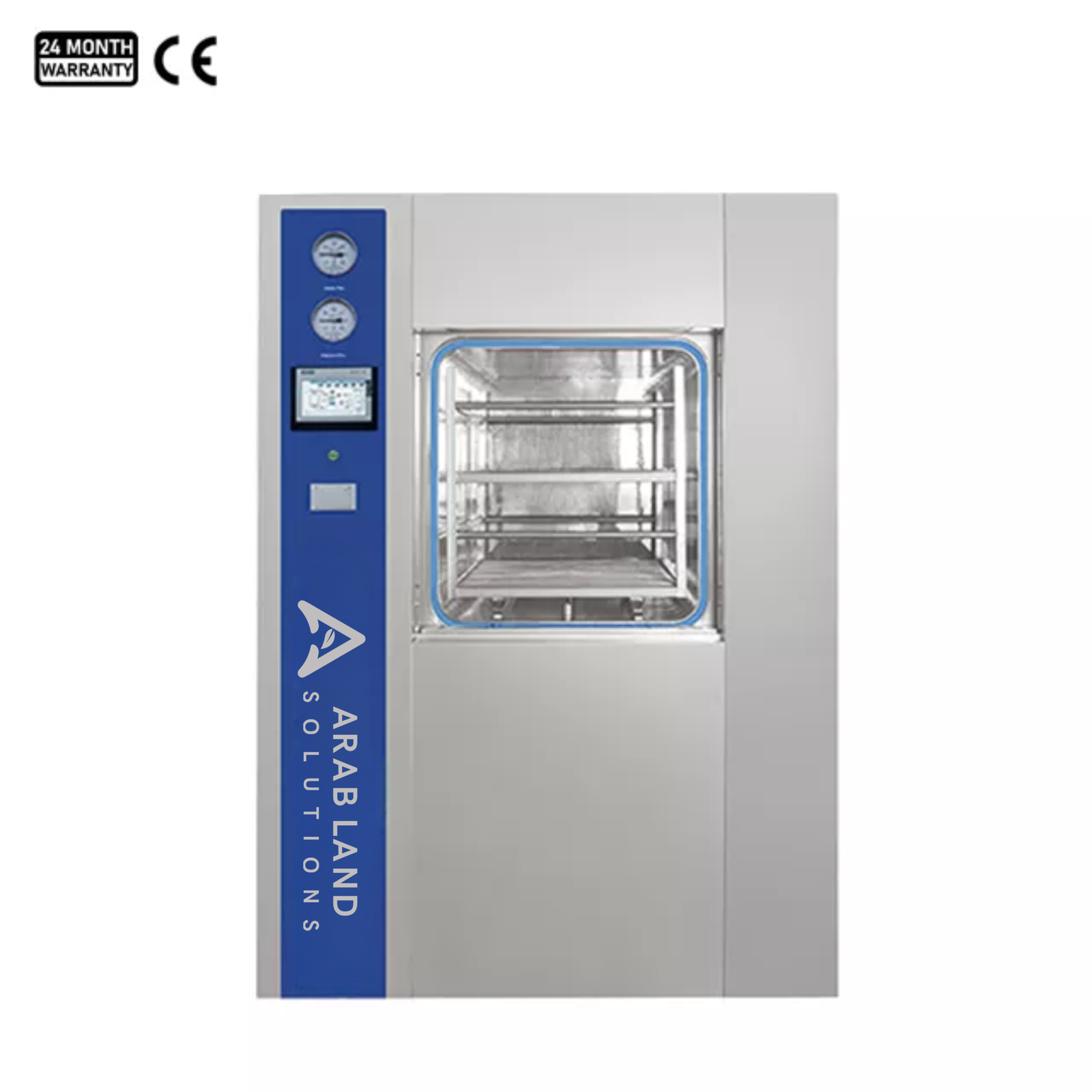

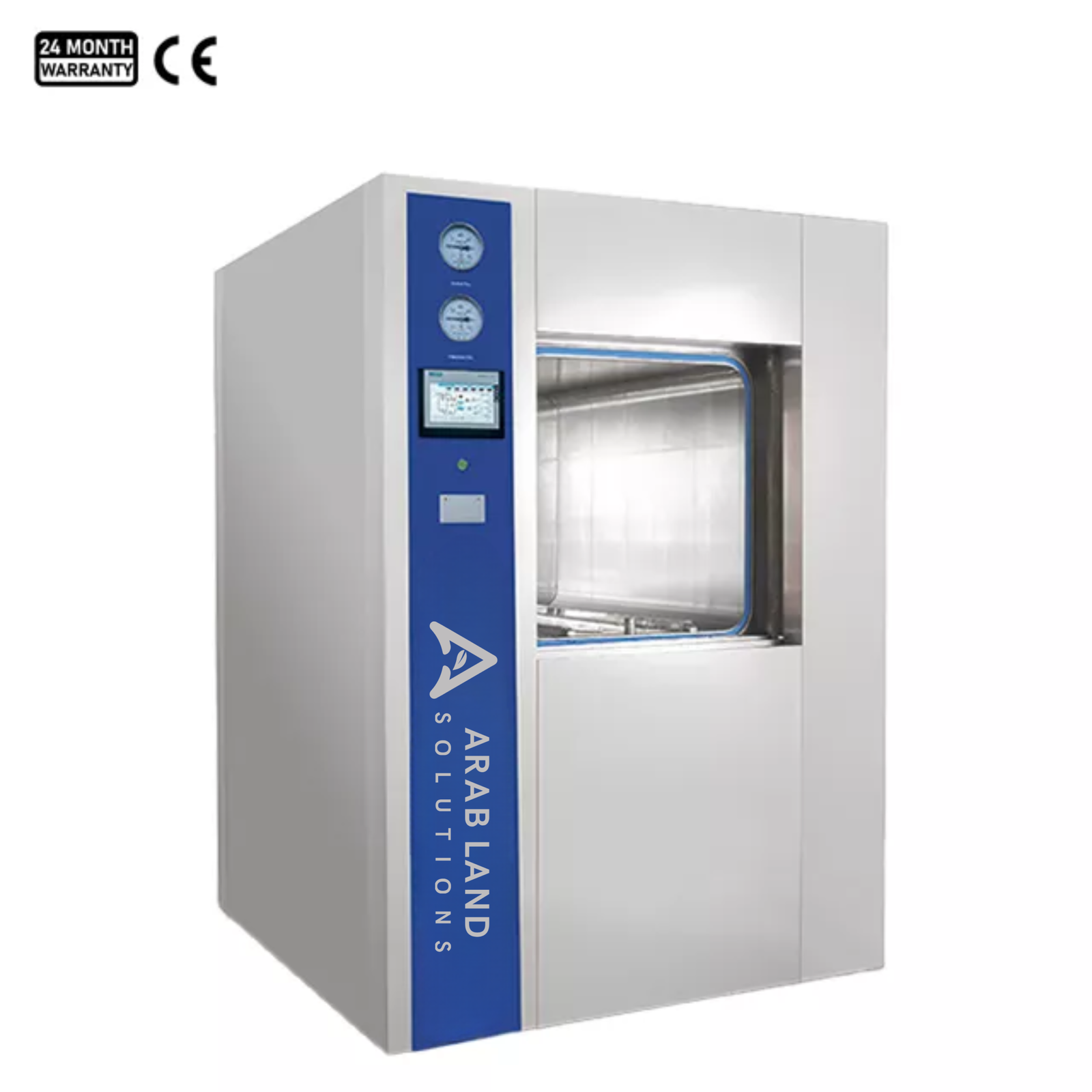

Horizontal Pulse Vacuum Autoclave with Lift Door
Horizontal Pulse Vacuum Autoclave with Lift Door
Horizontal Pulse Vacuum Autoclave with Lift Door
Horizontal Pulse Vacuum Autoclave with Lift Door
Click to enlarge
    Horizontal Pulse Vacuum Autoclave with Lift Door
    Horizontal Pulse Vacuum Autoclave with Lift Door
    Horizontal Pulse Vacuum Autoclave with Lift Door
    Horizontal Pulse Vacuum Autoclave with Lift Door
    Horizontal Pulse Vacuum Autoclave, Motorised Door
    Horizontal Pulse Vacuum Autoclave, Motorised Door
    Back to products
    Horizontal Pulse Vacuum Autoclave, Motor Hinge Door
    Horizontal Pulse Vacuum Autoclave, Motor Hinge Door

    Horizontal Pulse Vacuum Autoclave with Lift Door

    Volume(L) : 150 / 180 / 250 / 300 / 360 / 450 / 600 / 800
    Chamber Design Pressure : -0.1/0.3MPa
    Generator Design Pressure : 1MPa
    Design Temperaure : 150℃
    Maximum Operating Temperature : 139℃
    This horizontal pulse vacuum autoclave autoclaves all items in the laboratory, including liquids.
    9 People watching this product now!

    Price range: د.إ 51,088.15 through د.إ 72,550.24 + VAT

    We added you to this product's waitlist and we'll send you an email when the product is available.

    Leave Waitlist

    This product is currently sold out.

    No worries! Enter your email, and we'll let you know as soon as it's back in stock.

    Add to wishlist
    SKU: ST-BV Category:
    Brand: ARL Solutions

    🥳 Get 5% Off on Manual Stackers

    Use the coupon code ARL-5 at checkout to get 5%* off the Robust Manual Pallet Stacker.

    All products

    Horizontal Pulse Vacuum Autoclave with Lift Door

    Horizontal Pulse Vacuum Autoclave with Lift Door
    Volume(L) : 150 / 180 / 250 / 300 / 360 / 450 / 600 / 800
    Chamber Design Pressure: -0.1/0.3MPa
    Generator Design Pressure: 1MPa
    Design Temperaure : 150℃
    Maximum Operating Temperature: 139℃
    This horizontal pulse vacuum autoclaves all laboratory items, including liquids.

    Horizontal Pulse Vacuum Autoclave Specifications:

    Model ST-BV150PV ST-BV180PV ST-BV250PV ST-BV300PV ST-BV360PV ST-BV450PV ST-BV600PV ST-BV800PV
    Chamber Size (WxHxD)(mm) 450×450×750 450×450

    ×900

    		 550×550

    ×845

    		 550×550

    ×1000

    		 610×610

    ×1000

    		 652×69

    0×1000

    		 652×690

    ×1350

    		 652×69

    0×1800
    Volume (L) 150 180 250 300 360 450 600 800
    Overall Sizes (LxWxH)(mm) 1045×112

    0×1800

    		 1185×112

    0×1800

    		 1200×129

    0×1850

    		 1350×129

    0×1850

    		 1350×135

    0×1850

    		 1350×140

    0×1950

    		 1700×140

    0×1950

    		 2150×140

    0×1950
    Steam Consumption (KG/C) 12 12 16 18 20 22 35 52
    Water Consumption (KG) 80 90 120 140 160 180 320 400
    Power 380V, 50HZ, 2KW+(12KW) 380V, 50HZ, 2KW+(15KW) 380V, 50HZ,

    2KW+(20KW)

    		 380V, 50HZ,

    2KW+(20KW)

    		 380V, 50HZ,

    2KW+(20KW)

    		 380V, 50HZ,

    2KW+(30KW)

    		 380V, 50HZ,

    3KW+(36KW)

    		 380V, 50HZ,

    3.5KW+(48KW)
    Shipping Size (Main Machine) (WxDxH)(mm) 1210×128

    0×2110

    		 1350×127

    0×2100

    		 1350×145

    0×2100

    		 1500×140

    0×2100

    		 1470×150

    0×2150

    		 1500×155

    0×2200

    		 1850×155

    0×2250

    		 2150×143

    0×2250
    Shipping Size (Sterilizer Loading Cart)(WxDxH)(mm) – – 1420×80

    0×1050(S)

    		 – 1600×75

    0×1100(S)

    		 – – –
    – – 1420×120

    0×1050(D)

    		 1500×115

    0×960(D)

    		 – 1450×115

    0×1050(D)

    		 1900×115

    0×1050(D)

    		 2350×135

    0×1100(S)
    Total shipping sizes = Main machine + Sterilizer Loading Carts;
    N.W./G.W. (kg) 520/670 560/710 745/895 820/970 870/1020 965/1115 1150/1300 1350/1500
    Chamber Design Pressure -0.1/0.3MPa
    Jacket Design Pressure 0.3MPa
    Generator Design Pressure 1MPa
    Design Temperaure 150℃
    Maximum Operating Temperature 139℃
    Maximum Operating Pressure 0.25MPa
    Chamber Relief Valve 0.28MPa
    Jacket Relief Valve 0.28MPa
    Accuracy of Temperature 0.1℃
    Accuracy of Pressure 0.1KPa
    Sterilization Temperature Control Accuracy ±1℃
    Temperature Uniformity ±1℃
    Negative Pressure Pulsating Vacuum -80~0KPa
    Across the Pressure Pulsation -80~80KPa
    Positive Pressure Pulse 0~9 times
    Maximum Vacuum -96KPa
