    Model E Canopy Silent Diesel Generator ARL-DY-LN-E+ATS with integrated

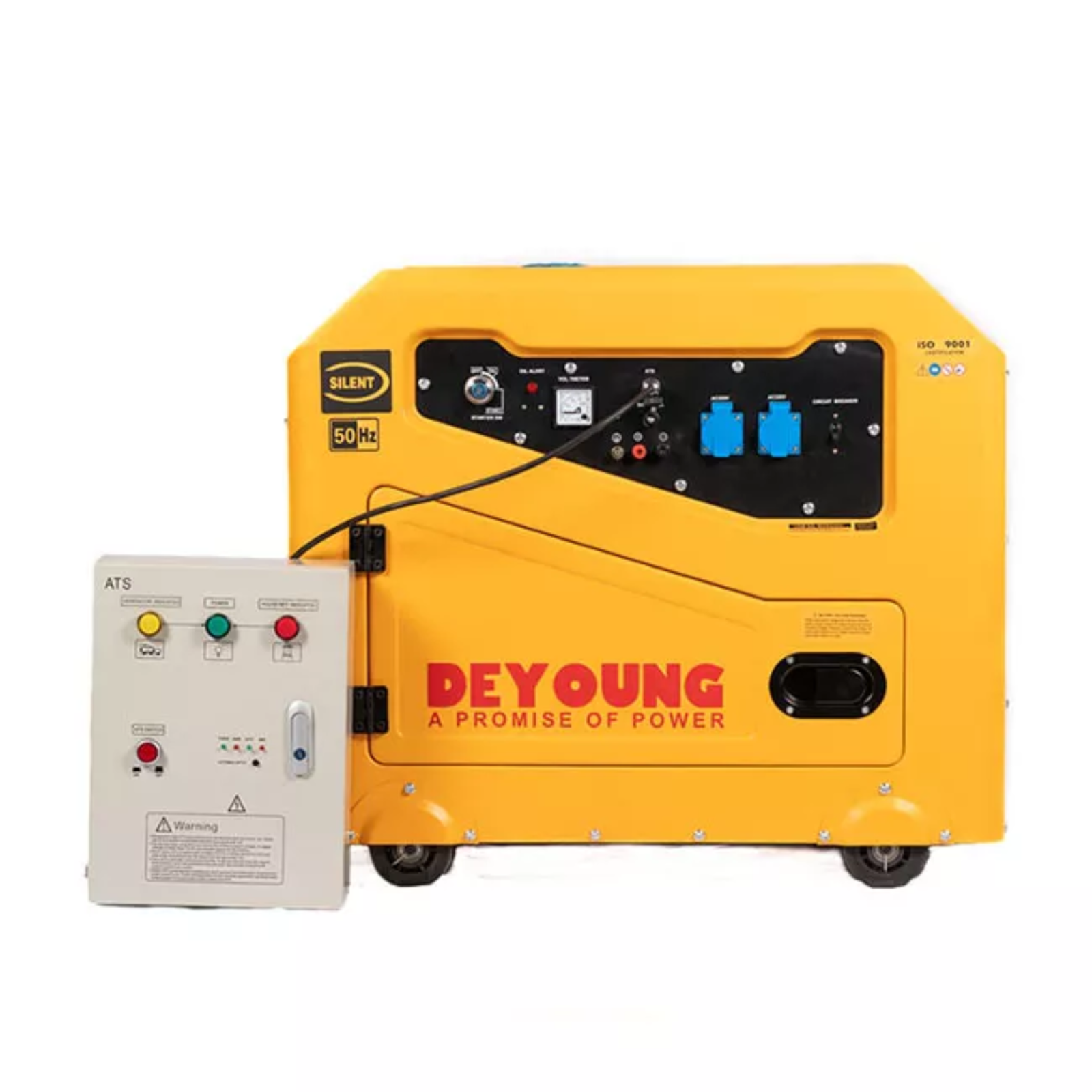

    Product Description: The ARL-DY series Model E Canopy Silent Diesel Generator ARL-DY-LN-E+ATS with integrated ATS are designed for quiet operation, automatic backup power, and reliable performance. Each model features an electric start system and is ideal for various applications where power is required in noise-sensitive environments and automatic power transfer is essential. The “Model E Canopy” designation suggests these units have a specific type of protective enclosure.

    Model Specifications: Model E Canopy Silent Diesel Generator ARL-DY-LN-E+ATS

    Feature ARL-DY6700LN-E with ATS ARL-DY7500LN-E with ATS
    Rated Power (kW/kVA) 4.5/5.0 5.0/6.0
    Max. Power (kW/kVA) 5.0/5.5 5.5/6.5
    Rated Frequency (Hz) 50/60 50/60
    Rated Voltage (V) 110/220V, 120/240V, 220V, 230V, 220/380V, 230/400V, 240/415V 110/220V, 120/240V, 220V, 230V, 220/380V, 230/400V, 240/415V
    Starting System Electric start Electric start
    Engine Model DY186FA(E) DY188FE
    Engine Power (HP) 10 12
    Engine Speed (RPM) 3000/3600 3000/3600
    Displacement (cc) 418 456
    Fuel Tank Capacity 16L 16L
    Lub. Oil Capacity 1.65L 1.65L
    Net Weight (kg) 163 164
    Gross Weight (kg) 168 169
    Size (mm) 950 x 550 x 760 950 x 550 x 760
    ATS Included Included

    Key Points: Model E Canopy Silent Diesel Generator ARL-DY-LN-E+ATS

    • Model E Canopy: These models have a specific canopy design, likely for weather protection or noise reduction.
    • Silent Operation: The “LN” designation indicates low noise operation.
    • ATS Included: Automatic Transfer Switch for automatic power changeover during outages.
    • Electric Start: All models feature electric starting for convenience.
    • Common Specifications: Fuel tank capacity, lubrication oil capacity, and physical size are the same across both models.
    • Progressive Power Increase: The models offer a progressive increase in power output, engine power, and displacement.
