Pneumatic Lug Butterfly Valve

Pneumatic Lug Butterfly Valve

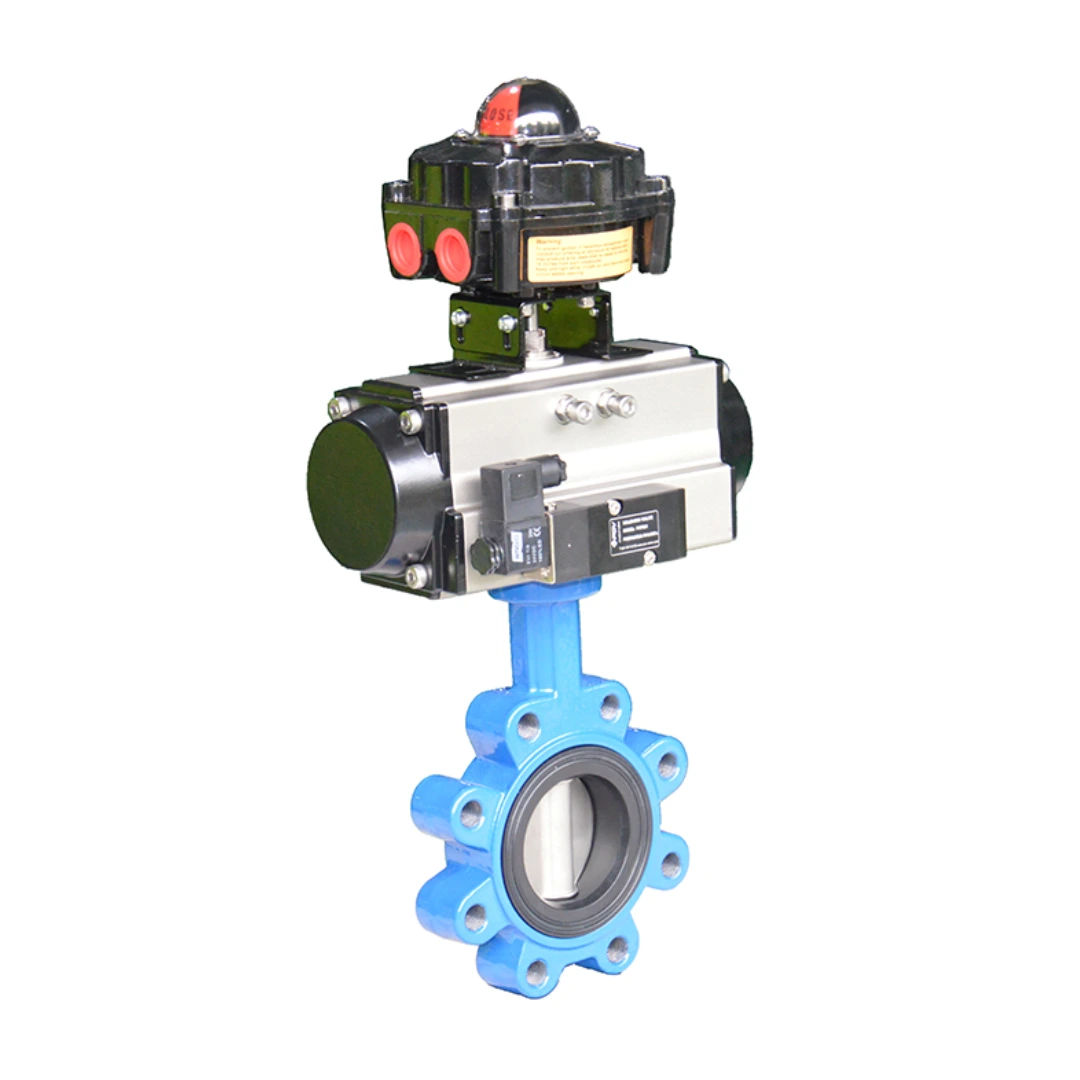

The Pneumatic Lug Butterfly Valve is a high-performance industrial valve designed for the efficient management of gas, water, and oil. Built with a robust LUG body style, it features a diverse range of body materials including Cast Iron, Ductile Iron, Aluminum, and various Stainless Steel grades (CF8, CF8M, CF3M). This valve utilizes a pneumatic actuator available in double acting, single acting normally closed, and single acting normally open configurations to provide precise control. Engineered to operate within a temperature range of -40 °C to + 135 °C, it is suitable for various industrial piping standards and environments.

Key Features:

• Diverse Material Selection: Body options include Cast Iron, Ductile Iron, Aluminum, and Stainless Steel; disc options include CF3M, CF3, CF8M, Nylon Coated Ductile Iron, Aluminum Bronze, and Double Stainless Steel (2507, 1.4529).
• Versatile Actuation: Supports Double acting, Single acting normally closed, and Single acting normally open pneumatic actuators.
• Standard Compliance: Features an ISO5211 top flange and accommodates EN 1092, ASME Class 150, AS 4087, and JIS 5K/10K flange standards.
• Flexible End Connections: Available in LUG and Wafer end styles.
• Customizable Options: Can be equipped with a solenoid valve, limit switch box, filter, E/P positioner, or hand wheel.

Technical Specifications:

• Size Range: 1″ – 80″ (25mm – 2000mm).
• Pressure Rating: 1.0~1.6Mpa.
• Temperature Range: -40 °C to + 135 °C (depending on pressure, medium, and material).
• Stem: Stainless Steel.
• Seats: NBR, EPDM, PTFE, VITON, FKM*, and Polyurethane.

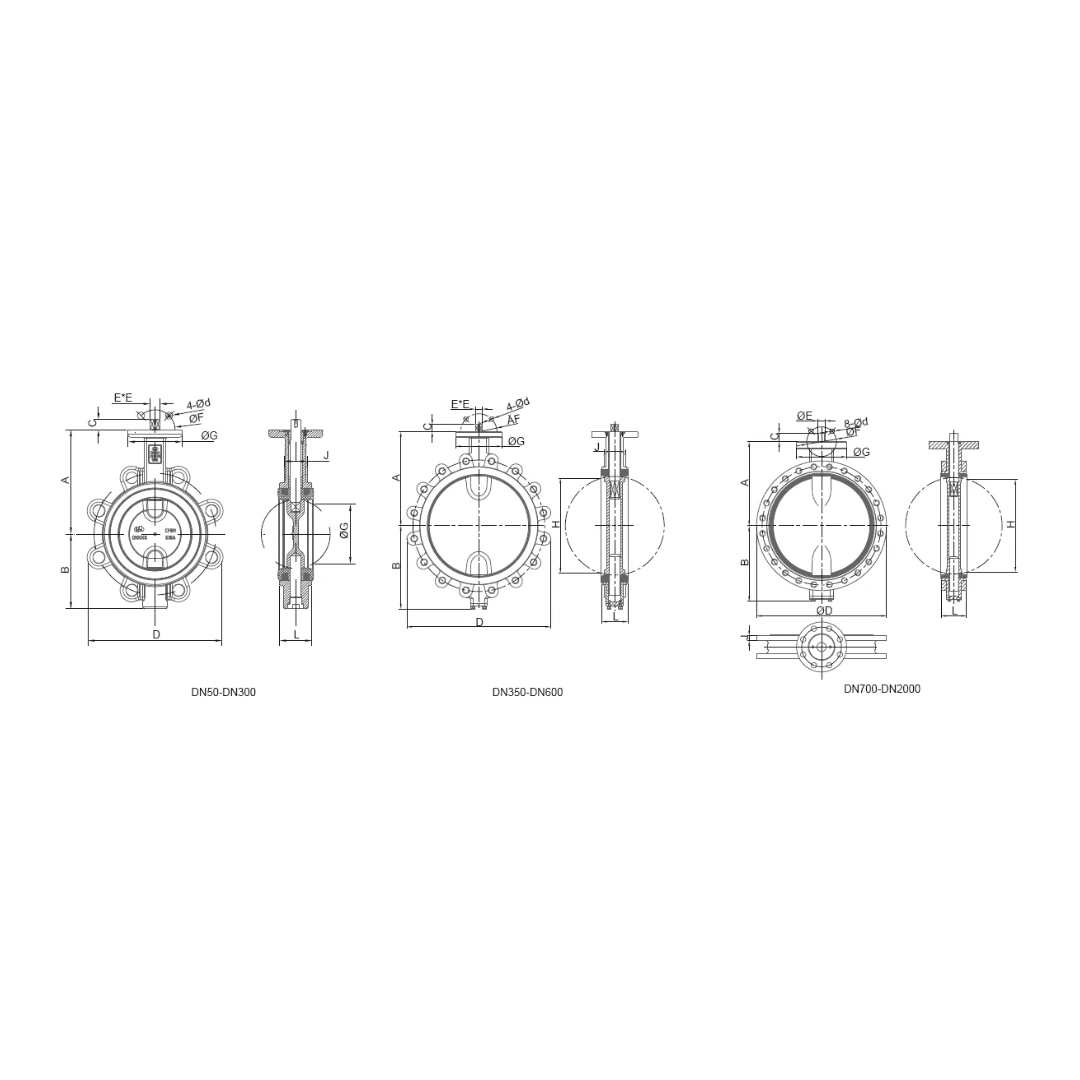

Dimensions
