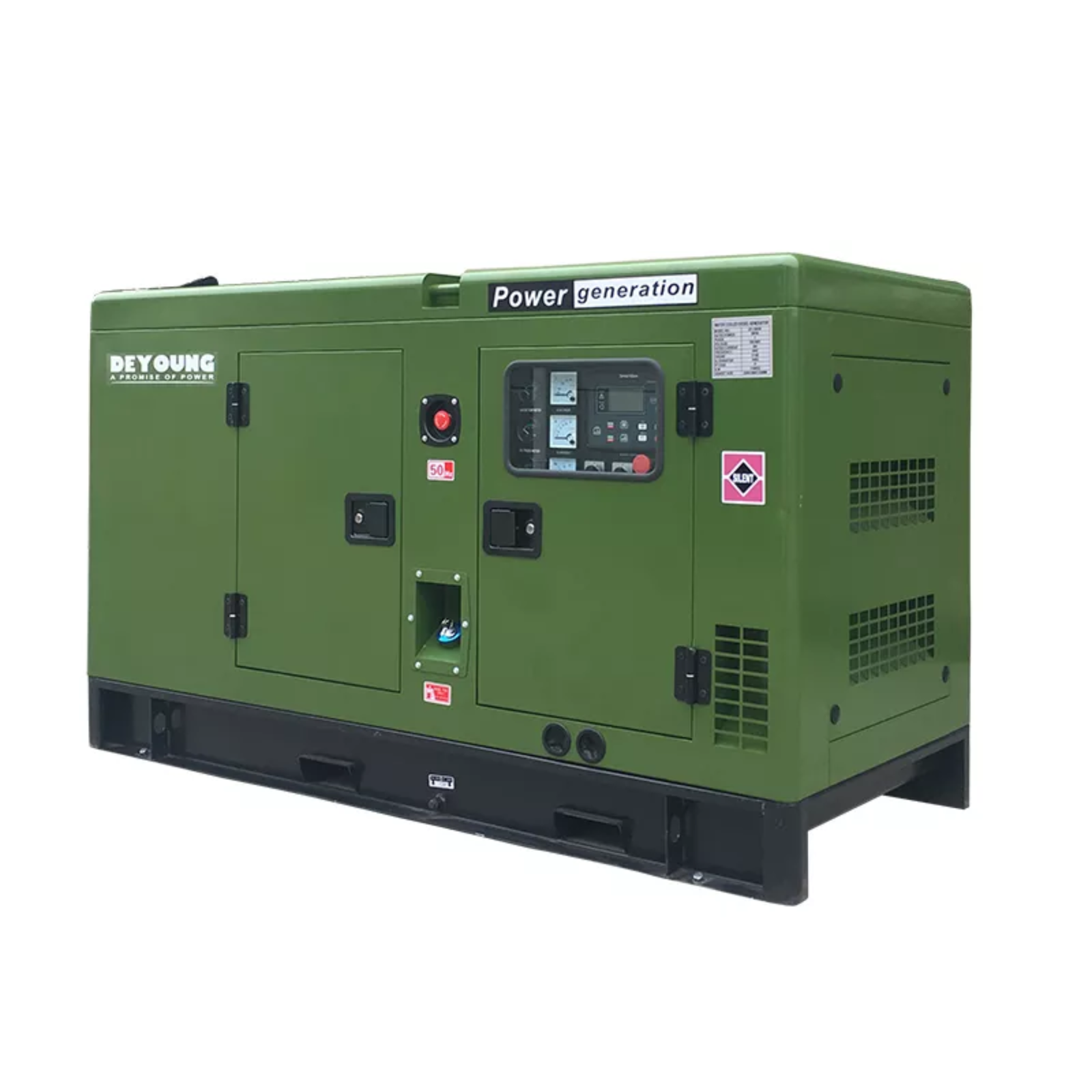

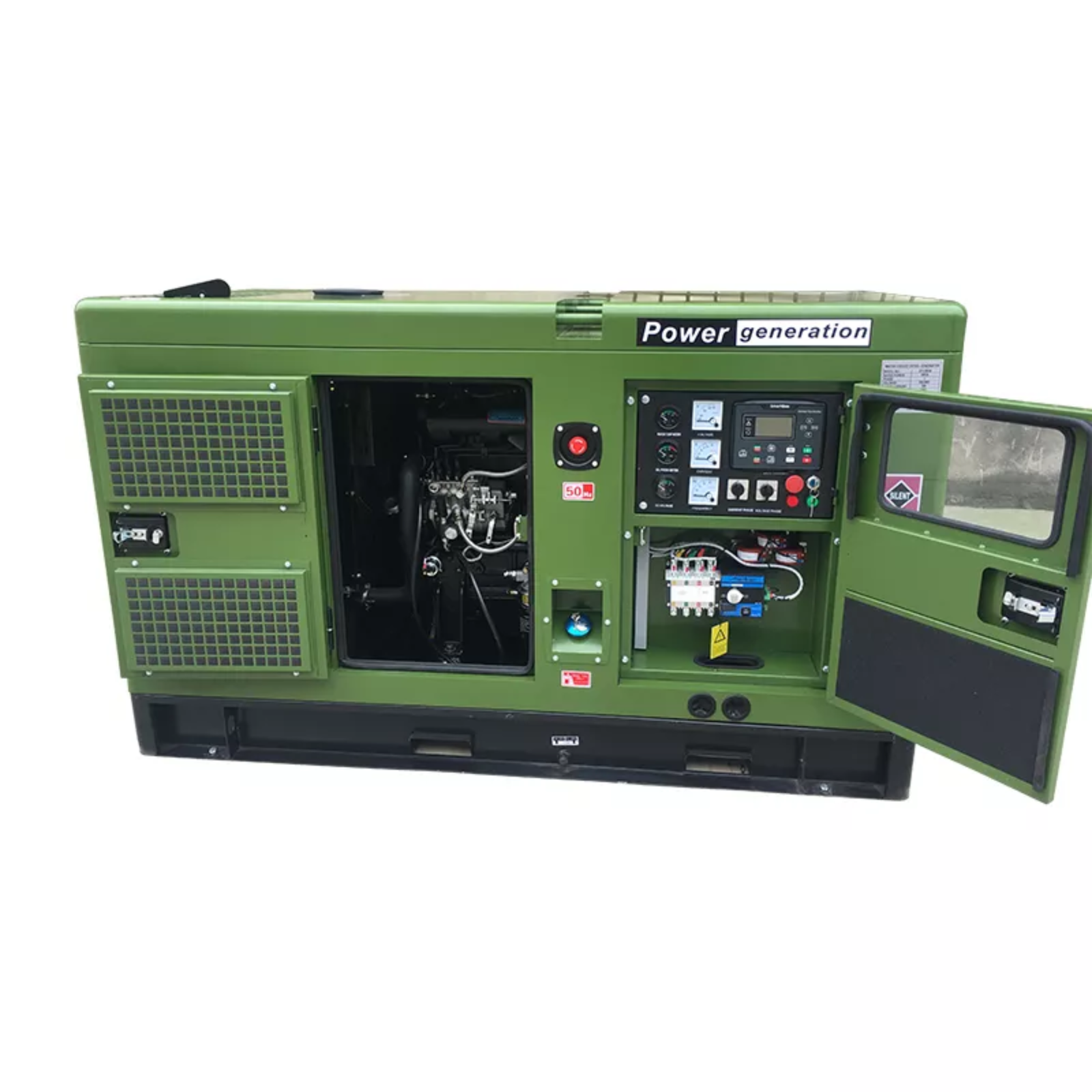

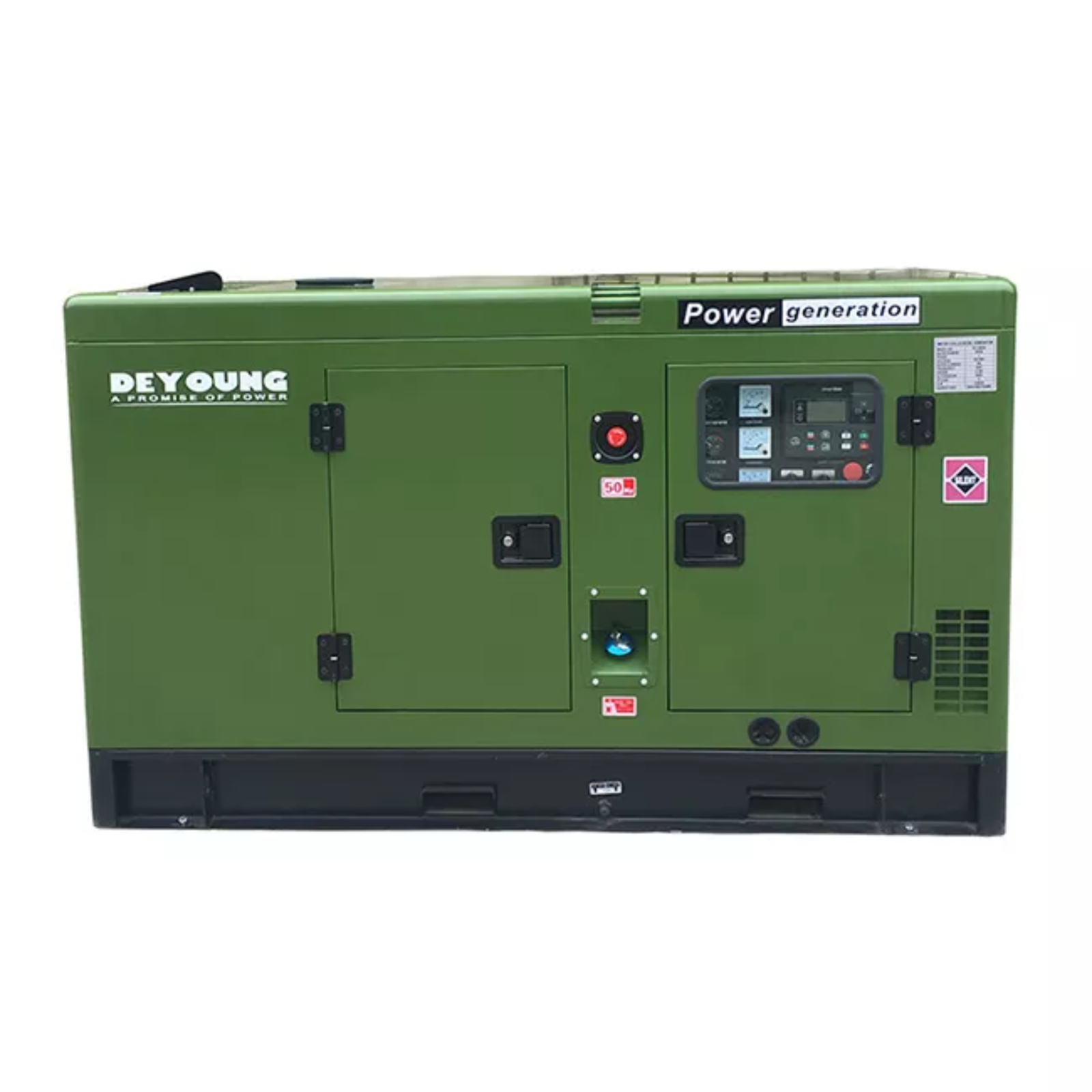

    Diesel Generator with Yangdong Engine ARL-GF3

    Diesel Generator with Yangdong Engine ARL-GF3

    Product Description: The ARL-GF3 series diesel generators are powered by reliable Yangdong engines and are designed for continuous power supply in various applications. These water-cooled, 4-stroke, in-line, direct injection engines operate at 1500 rpm. The generators feature electric start with a 12V system and are available in a range of power outputs to meet diverse needs.

    Model Specifications:

    Feature ARL-GF3-Y8KW ARL-GF3-Y10KW ARL-GF3-Y12KW ARL-GF3-Y15KW ARL-GF3-Y20KW ARL-GF3-Y25KW
    Frequency (Hz) 50 / 60 50 / 60 50 / 60 50 / 60 50 / 60 50 / 60
    Power (kW) 8 / 8 10 / 12 12 / 15 15 / 20 20 / 25 25 / 30
    Power (kVA) 10 / 10 12.5 / 15 15 / 18 17.48 / 25 25 / 30 31.25 / 37
    Diesel Engine Model 380 480 485 490 4100 4102
    Engine Specification Water-cooled, 4-stroke, in-line, direct injection, 1500 rpm Water-cooled, 4-stroke, in-line, direct injection, 1500 rpm Water-cooled, 4-stroke, in-line, direct injection, 1500 rpm Water-cooled, 4-stroke, in-line, direct injection, 1500 rpm Water-cooled, 4-stroke, in-line, direct injection, 1500 rpm Water-cooled, 4-stroke, in-line, direct injection, 1500 rpm
    Bore x Stroke (mm) 80 x 85 80 x 90 85 x 90 90 x 100 100 x 115 102 x 118
    Rated Output (kW) 10 12 14 17 27 33
    Fuel Consumption (g/kw.hr) ≤247 ≤250.6 ≤248.9 ≤247.5 ≤237 ≤238
    Lube Consumption (g/kw.hr) – – – – ≤2.72 ≤2.72
    Aspiration Natural Natural Natural Natural Natural Natural
    Compression Ratio 18:01 18:01 18:01 18:01 18:01 18:01
    Starting Electric (12V) Electric (12V) Electric (12V) Electric (12V) Electric (12V) Electric (12V)
    Alternator Model 164B 164C 164D 184E 184F 184G
    Alternator Rated Power (kW) 8.8 10.8 12.8 18 22 25
    Voltage 230/400 230/400 230/400 230/400 230/400 230/400
    Dimensions (L x W x H) (mm) 1600 x 800 x 950 1600 x 800 x 950 1600 x 800 x 950 1830 x 800 x 950 2000 x 900 x 1040 2000 x 900 x 1040
    Net Weight (kg) 650 700 750 800 900 950
    Key Points:
    • Yangdong Engines: Powered by reliable Yangdong diesel engines.
    • Water-Cooled: Ensures efficient operation under various conditions.
    • Electric Start: Easy and convenient starting.
    • Range of Power Outputs: Models available to suit different power requirements.
    • Three-Phase Power: Provides 230/400V three-phase power.
