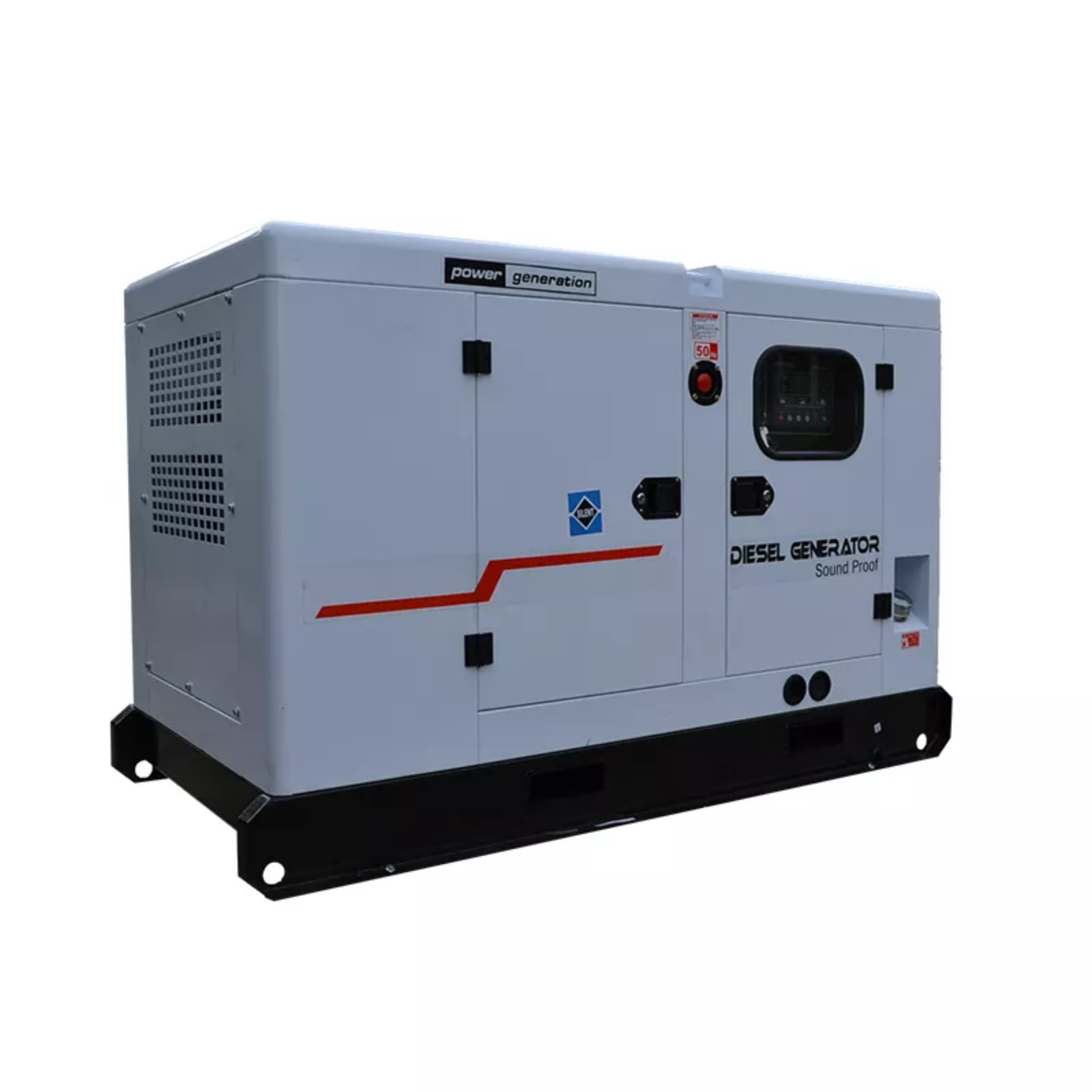

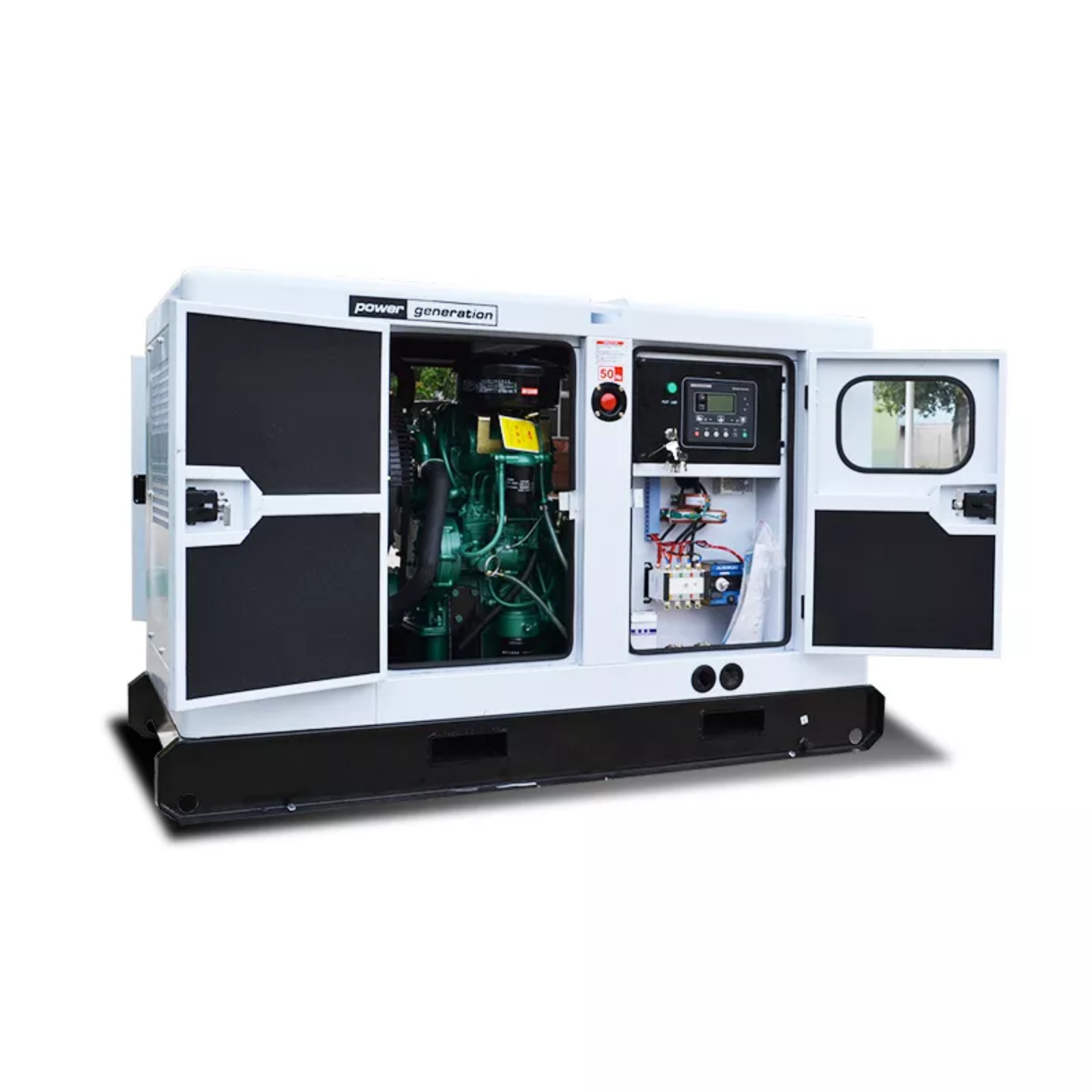

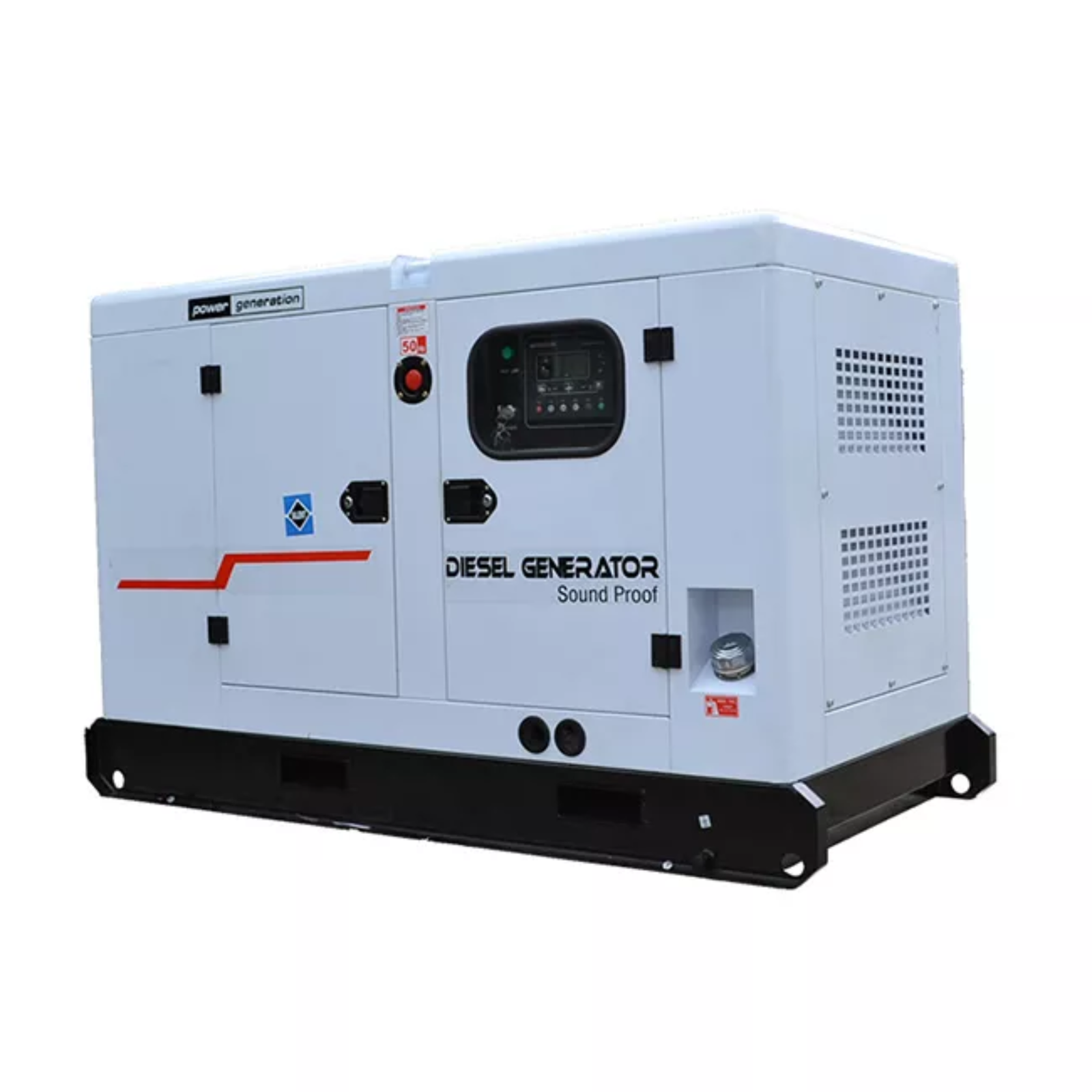

Diesel Generators with Weichai Engine ARL-GF3 Series
Diesel Generators with Weichai Engine ARL-GF3 Series
Diesel Generators with Weichai Engine ARL-GF3 Series
Click to enlarge
    Diesel Generators with Weichai Engine ARL-GF3 Series
    Diesel Generators with Weichai Engine ARL-GF3 Series
    Diesel Generators with Weichai Engine ARL-GF3 Series
    Diesel Generator with Yangdong Engine ARL-GF3
    Diesel Generator with Yangdong Engine ARL-GF3
    Back to products
    Water Cooled Diesel Generator Sets with Cummins Engines ARL-GF3-C Series
    Water Cooled Diesel Generator Sets with Cummins Engines ARL-GF3-C Series

    Diesel Generators with Weichai Engine ARL-GF3 Series

    9 People watching this product now!

    Add to wishlist
    Categories: ,
    Brand: ARL Solutions

    🥳 Get 5% Off on Manual Stackers

    Use the coupon code ARL-5 at checkout to get 5%* off the Robust Manual Pallet Stacker.

    All products

    ARL-GF3 Series Diesel Generators with Weichai Engine Specifications

    Product Description: The ARL-GF3 series Diesel Generators with Weichai Engine are powered by reliable Weichai engines and are designed for continuous power supply in various applications. These water-cooled, 4-stroke, in-line, direct injection engines operate at 1500 rpm. The generators feature electric start with a DC 12V or 24V system and are available in a range of power outputs to meet diverse needs.

    Model Specifications:

    Feature ARL-GF3-15KW ARL-GF3-20KW ARL-GF3-24KW ARL-GF3-30KW ARL-GF3-40KW ARL-GF3-50KW ARL-GF3-60KW ARL-GF3-64KW ARL-GF3-80KW ARL-GF3-100KW ARL-GF3-120KW ARL-GF3-150KW
    Continuous Output (kW) 15 20 24 30 40 50 60 64 80 100 120 150
    Continuous Output (kVA) 18.75 25 30 40 50 62.5 75 80 100 125 150 187.5
    Diesel Engine Model 495D 495D 495ZD 4105D 4150ZD 4105ZD 4105IZD 6105ZD 6105ZD 6105AZLD 6105IZLD 6113ZLD
    Engine Type Water-cooled, 4-stroke, in-line, direct injection Water-cooled, 4-stroke, in-line, direct injection Water-cooled, 4-stroke, in-line, direct injection Water-cooled, 4-stroke, in-line, direct injection Water-cooled, 4-stroke, in-line, direct injection Water-cooled, 4-stroke, in-line, direct injection Water-cooled, 4-stroke, in-line, direct injection Water-cooled, 4-stroke, in-line, direct injection Water-cooled, 4-stroke, in-line, direct injection Water-cooled, 4-stroke, in-line, direct injection Water-cooled, 4-stroke, in-line, direct injection Water-cooled, 4-stroke, in-line, direct injection
    No. of Cylinders 4 4 4 4 4 4 4 6 6 6 6 6
    Bore x Stroke (mm) 100×115 100×115 100×115 / 105×110 105×110 105×125 105×125 105×130 105×125 105×125 105×125 105×135 105×125
    Displacement (L) 3.61 3.61 3.61 3.81 4.33 4.33 4.67 6.49 6.49 6.49 7.01 7.52
    Compression Ratio 17.5:1 17.5:1 17.5:1 19.5:1 16:01 16:01 16:01 16:01 16:01 16:01 16:01 16:01
    Induction System Natural Natural Natural Natural Turbocharged Turbocharged Turbocharged Turbocharged Turbocharged Turbocharged with intercooler Turbocharged with intercooler Turbocharged with intercooler
    Rated Output (kW) 30.1 30.1 30.1 36.4 56 56 66 90 90 110 134 175
    Rated Speed (rpm) 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500
    Fuel Consumption (g/kw.h) ≤251.6 ≤251.6 ≤251.6 ≤251.6 ≤232 ≤232 ≤232 ≤224 ≤224 ≤218 ≤215 ≤225
    Oil Consumption (g/kw.h) 1.4 1.4 1.4 1.4 1.63 1.63 1.63 1.63 1.63 1.63 1.63 1.54
    Cooling Method Water-cooled with radiator Water-cooled with radiator Water-cooled with radiator Water-cooled with radiator Water-cooled with radiator Water-cooled with radiator Water-cooled with radiator Water-cooled with radiator Water-cooled with radiator Water-cooled with radiator Water-cooled with radiator Water-cooled with radiator
    Starting Method DC 12V or 24V Electric starting DC 12V or 24V Electric starting DC 12V or 24V Electric starting DC 12V or 24V Electric starting DC 12V or 24V Electric starting DC 12V or 24V Electric starting DC 12V or 24V Electric starting DC 12V or 24V Electric starting DC 12V or 24V Electric starting DC 12V or 24V Electric starting DC 12V or 24V Electric starting DC 12V or 24V Electric starting
    Alternator Model 184E 184F 184G 184H 224D 224E 274C 224C 274C 274D 274F 274H
    Alternator Rated Power (kW) 15 20 25 30 40 50 60 64 80 100 120 150
    Rated Voltage 380/220, 400/230, 220V, 230V etc. 380/220, 40
