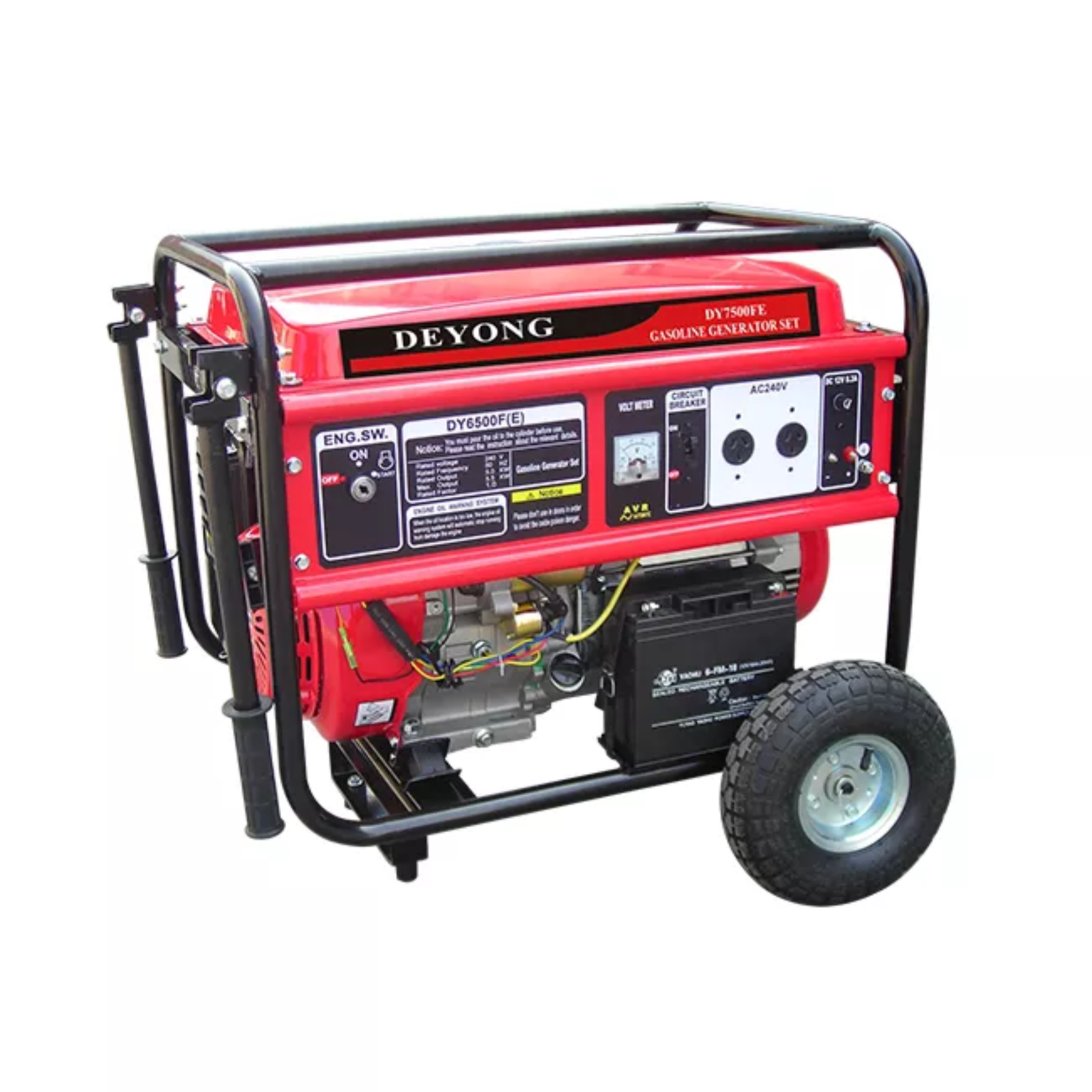

Free Pick Up Product Description: The ARL-DY-F-E series Gasoline Generator are designed for reliable power in a variety of applications. Each model features a single-cylinder, 4-stroke, forced air-cooled engine and offers a range of voltage options, making them versatile for various uses. Starting options include recoil start or electric start, depending on the model.
| Feature | ARL-DY1500F(E) | ARL-DY2500F(E) | ARL-DY3500F(E) | ARL-DY4500F(E) | ARL-DY5500F(E) | ARL-DY6500F(E) | ARL-DY7500F(E) |
|---|---|---|---|---|---|---|---|
| Rated Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated Output (kW) | 1.3/1.5 | 1.8/2.2 | 2.5/3 | 3/3.5 | 4/4.5 | 5/5.5 | 6/6.5 |
| Max. Output (kW) | 1.5/1.7 | 2/2.5 | 2.8/3.3 | 3.5/4 | 4.5/5 | 5.5/6 | 6.5/7 |
| Rated Voltage (V) | 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240, 220/380, 230/400, 240/415 | 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240, 220/380, 230/400, 240/415 | 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240, 220/380, 230/400, 240/415 | 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240, 220/380, 230/400, 240/415 | 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240, 220/380, 230/400, 240/415 | 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240, 220/380, 230/400, 240/415 | 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240, 220/380, 230/400, 240/415 |
| Power Factor (cosΦ) | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 |
| Engine Model | GX160 | GX200 | GX240 | GX270 | GX340 | GX390 | GX420 |
| Bore x Stroke (mm) | 68×45 | 68×54 | 73×58 | 77×58 | 82×64 | 88×64 | 90×66 |
| Rated Output (HP/3600) | 5.5 | 6.5 | 8 | 9 | 11 | 13 | 15 |
| Ignition Fashion | Non-contact transistorized ignition | Non-contact transistorized ignition | Non-contact transistorized ignition | Non-contact transistorized ignition | Non-contact transistorized ignition | Non-contact transistorized ignition | Non-contact transistorized ignition |
| Starting Fashion | Recoil Start | Recoil Start | Recoil Start or Electric Start | Recoil Start or Electric Start | Recoil Start or Electric Start | Recoil Start or Electric Start | Recoil Start or Electric Start |
| Fuel Capacity (L) | 17 | 17 | 17 | 25 | 25 | 25 | 25 |
| Oil Capacity (L) | 0.6 | 0.6 | 0.6 | 1.1 | 1.1 | 1.1 | 1.1 |
| Net Weight (kg) | 36 | 39 | 55 | 72 | 81 | 84 | 84 |
| Gross Weight (kg) | 39 | 42 | 58 | 76 | 85 | 88 | 88 |
| Packing Size (mm) | 615x445x445 | 615x445x445 | 615x445x445 | 700x525x560 | 700x525x560 | 700x525x560 | 700x525x560 |
Key Points:
