Angel Seat Position Valve Stainless Steel Cylinder

Angel Seat Position Valve Stainless Steel Cylinder

The Angel Seat Position Valve Stainless Steel Cylinder ARL-100 is a high-performance Y-type body style valve designed for reliable fluid and gas control. Constructed with durable materials like SS304, SS316, or SS316L for the body and stem, it ensures long-lasting performance in demanding environments. Driven by a pneumatic actuator made of PA or stainless steel, the Angel Seat Position Valve Stainless Steel Cylinder ARL-100 supports multiple control modes including double acting, single acting normally closed, and single acting normally open. This versatile valve accommodates various end connections such as thread, welding, and flange (PN10, PN16) to fit your precise industrial layout.

Key Features:

• Versatile Actuator Options: Available with Polyamide (PA) or robust stainless steel pneumatic actuators.
• Flexible Control Options: Supports double acting, single acting normally closed, and single acting normally open control mechanism setups.
• Broad Application Range: Suitable for water, alcohol, oils, fuel, salt solution, alkali solutions, organic solvents, and steam.
• Multiple End Connections: Designed to accommodate thread, welding, and flange (PN10, PN16) installation requirements.

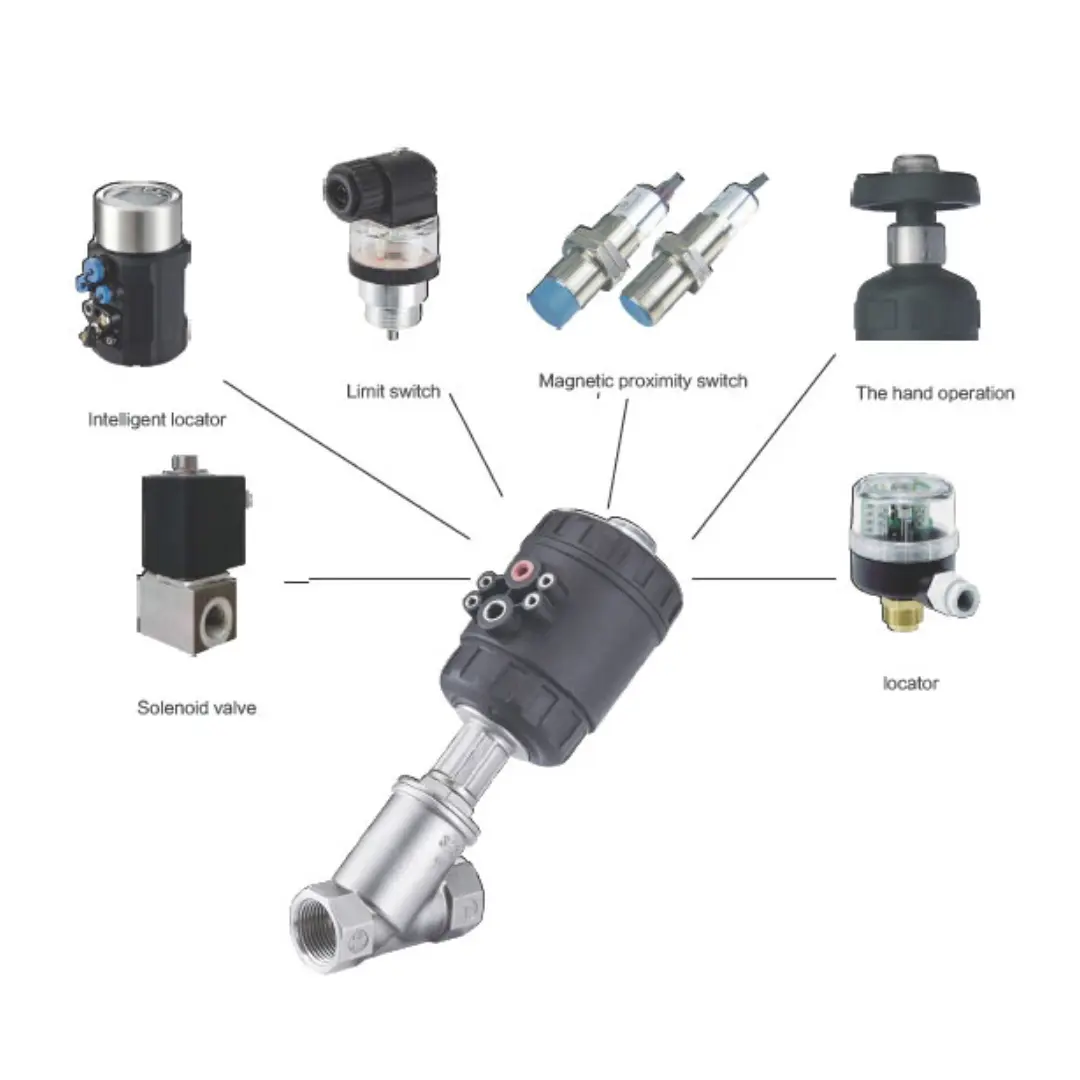

• Expandable Accessories: Compatible with a wide range of pneumatic accessories including a solenoid valve, limit switch box, filter, E/P positioner, intelligent locator, magnetic proximity switch, and manual hand wheel operation.

Technical Specifications:

• Body Material: SS304, SS316, SS316L
• Stem Material: SS304, SS316, SS316L
• Seats Material: PTFE
• Body Style: Y type
• Pressure Rating: 16 bar (Steam at 150 PSI / 365°F)
• Air Pilot Pressure: 0.6 Mpa
• Control Medium: Neutral gases, air
• Size Range: 3/8″ – 4″ (10mm – 100mm)
• Temperature Range: -40 °C to +180 °C (depending on pressure, medium, and material)
• Ambient Temperature: * PA Actuator: -40 °C to +60 °C

• • Stainless Steel Actuator: -40 °C to +80 °C

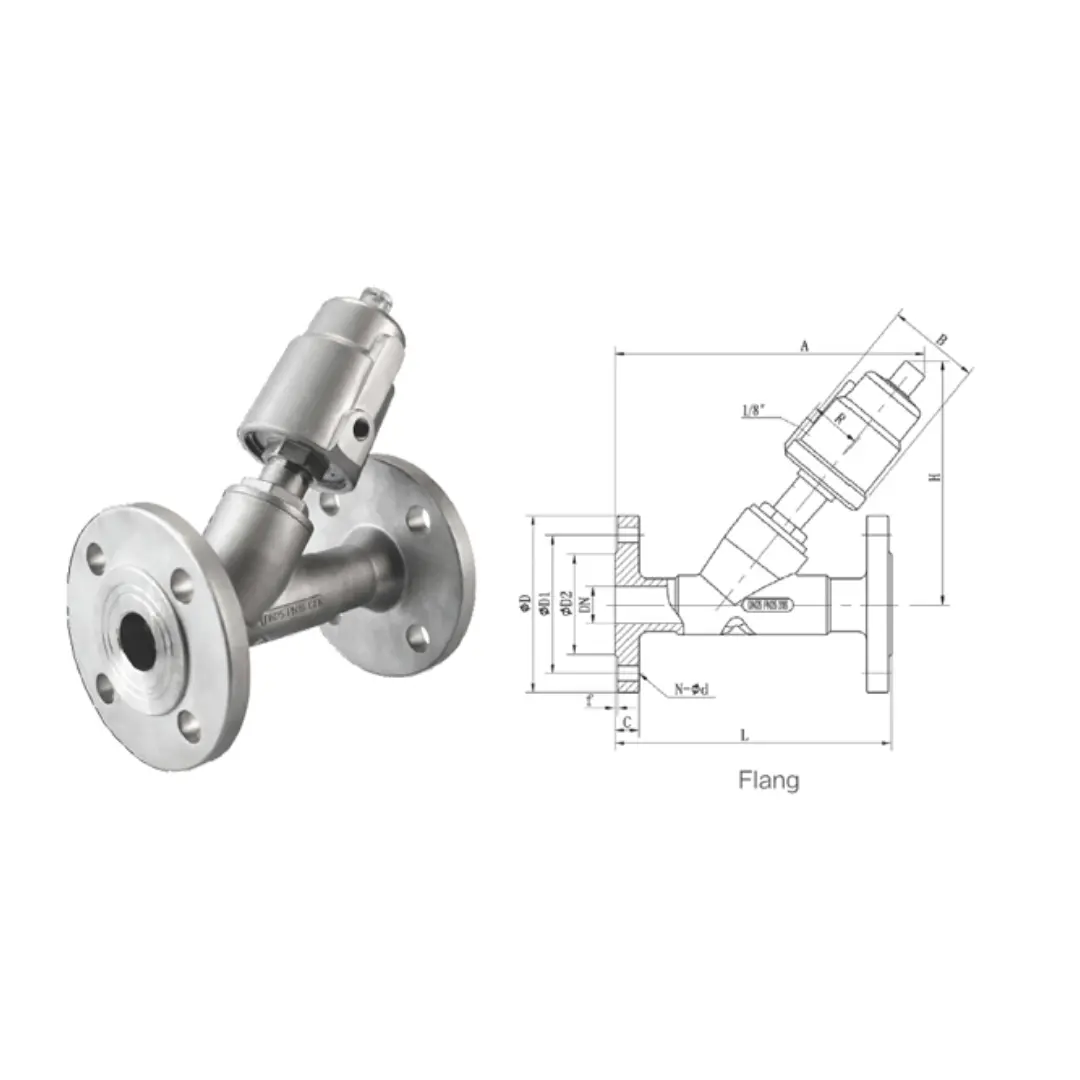

Flange Specifications Table
