Clamp Pneumatic Angel Seat Valve

Clamp Pneumatic Angel Seat Valve

The Clamp Pneumatic Angel Seat Valve ARL-100 is a highly reliable Y-type body style valve engineered for efficient control of liquids and gases. Featuring high-grade construction with body and stem components available in SS304, SS316, or SS316L, it provides exceptional durability under demanding conditions. The Clamp Pneumatic Angel Seat Valve ARL-100 is integrated with a pneumatic actuator in either PA or stainless steel, supporting versatile control mechanisms including double acting, single acting normally closed, and single acting normally open. Designed with secure clamp end connections, this system offers streamlined installation and reliable containment across low to high-temperature medium applications.

Key Features:

• Multiple Actuator Material Configurations: Available with Polyamide (PA) or robust stainless steel pneumatic actuators.
• Flexible Control Modes: Supports double acting, single acting normally closed, and single acting normally open system configurations.
• Secure Clamp Connections: Specially designed with clean and secure clamp ends for rapid setup and tight integration.
• Broad Media Suitability: Compatible with a diverse range of fluids including water, alcohol, oils, fuel, salt solution, alkali solutions, organic solvents, and steam.

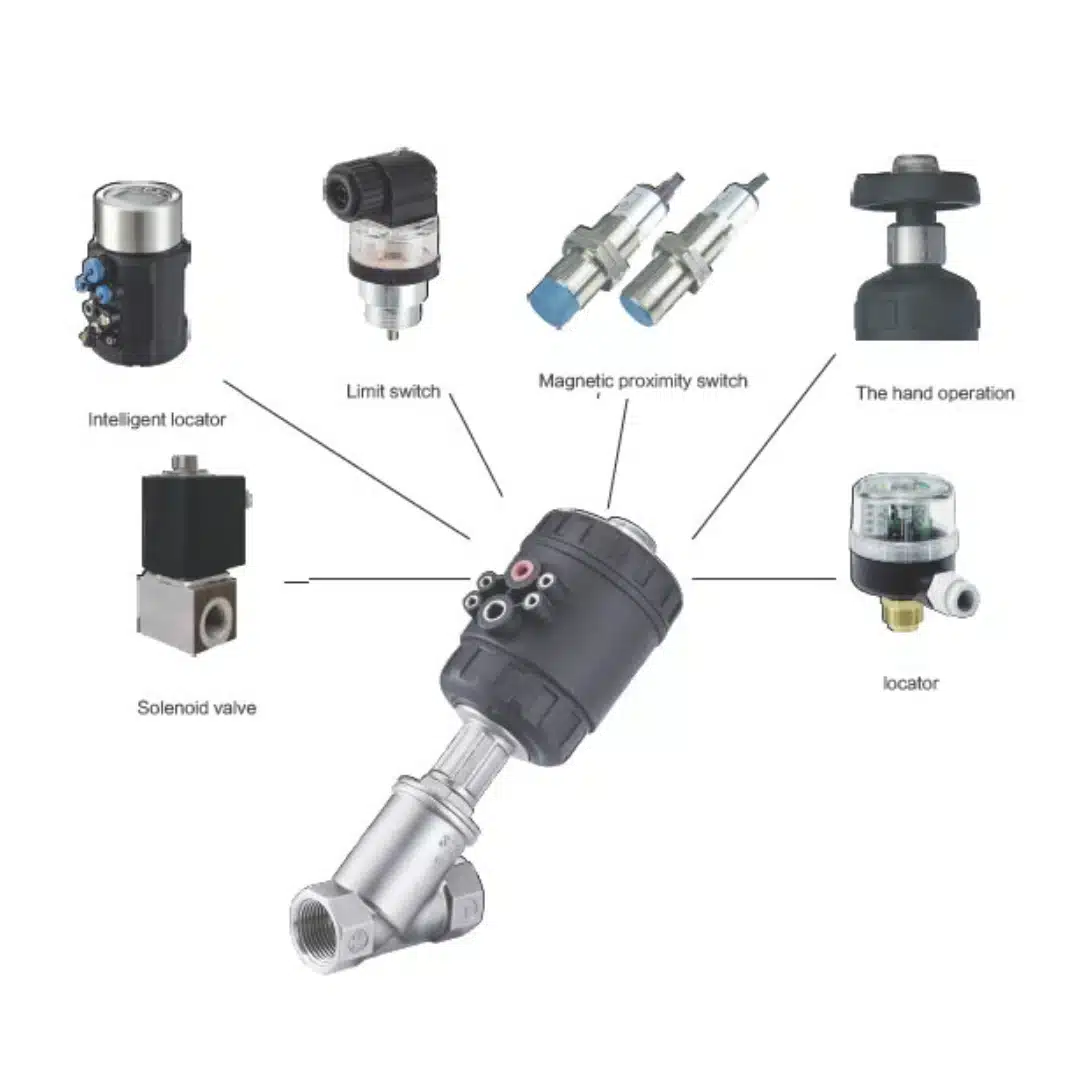

• Extensive Accessory Compatibility: Integrates seamlessly with a variety of pneumatic accessories such as a solenoid valve, limit switch box, filter, E/P positioner, intelligent locator, magnetic proximity switch, and hand wheel for manual operation.

Technical Specifications:

• Body Material: SS304, SS316, SS316L
• Stem Material: SS304, SS316, SS316L
• Seats Material: PTFE
• Body Style: Y type
• Ends: Clamp
• Pressure Rating: 16 bar (Steam at 150 PSI / 365°F)
• Air Pilot Pressure: 0.6 Mpa
• Control Medium: Neutral gases, air
• Size Range: 3/8″ – 4″ (10mm – 100mm)
• Temperature Range: -40 °C to +180 °C (depending on pressure, medium, and material)
• Ambient Temperature: * PA Actuator: -40 °C to +60 °C

• • Stainless Steel Actuator: -40 °C to +80 °C

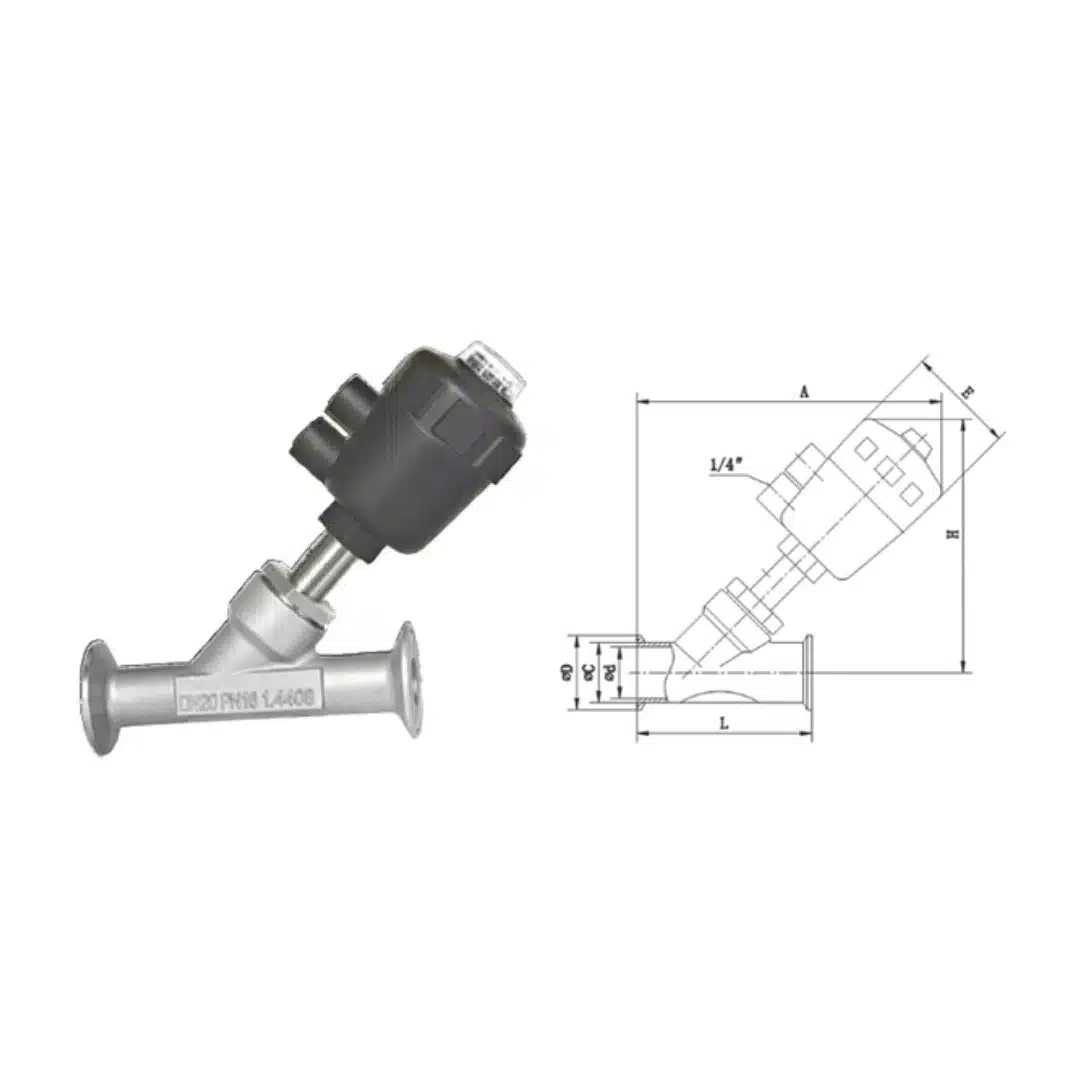

Overall Dimensions Table (mm)
