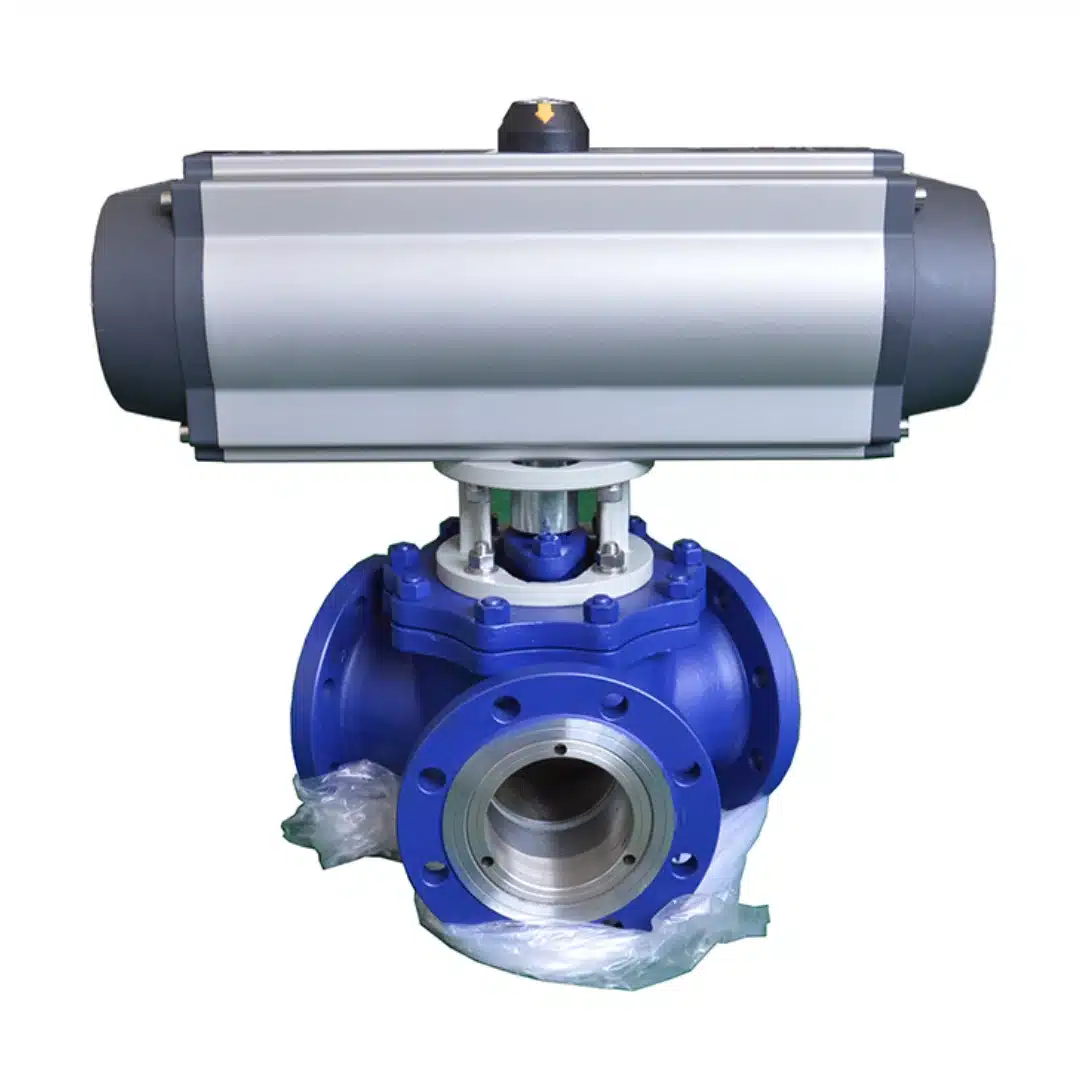

Pneumatic Y type 120 Ball Valve

Pneumatic Y type 120 Ball Valve

The Pneumatic Y type 120 Ball Valve ARL-Y120 is a specialized Y-type 3-way screw end flow control solution engineered for gas, water, and oil applications. Available in a 2″ to 12″ full port configuration, this valve features a body type option for a 120°-port or a 135°-port design to meet unique fluid dynamics requirements. It delivers reliable automated operation via a pneumatic actuator system, supporting double acting or single acting configurations. Built with high-quality material selections including WCB or stainless steel bodies paired with robust stellite-faced ball cores, the Pneumatic Y type 120 Ball Valve ARL-Y120 offers a self-cleaning design for high performance, zero leakage, and a medium free of detention.

Key Features:

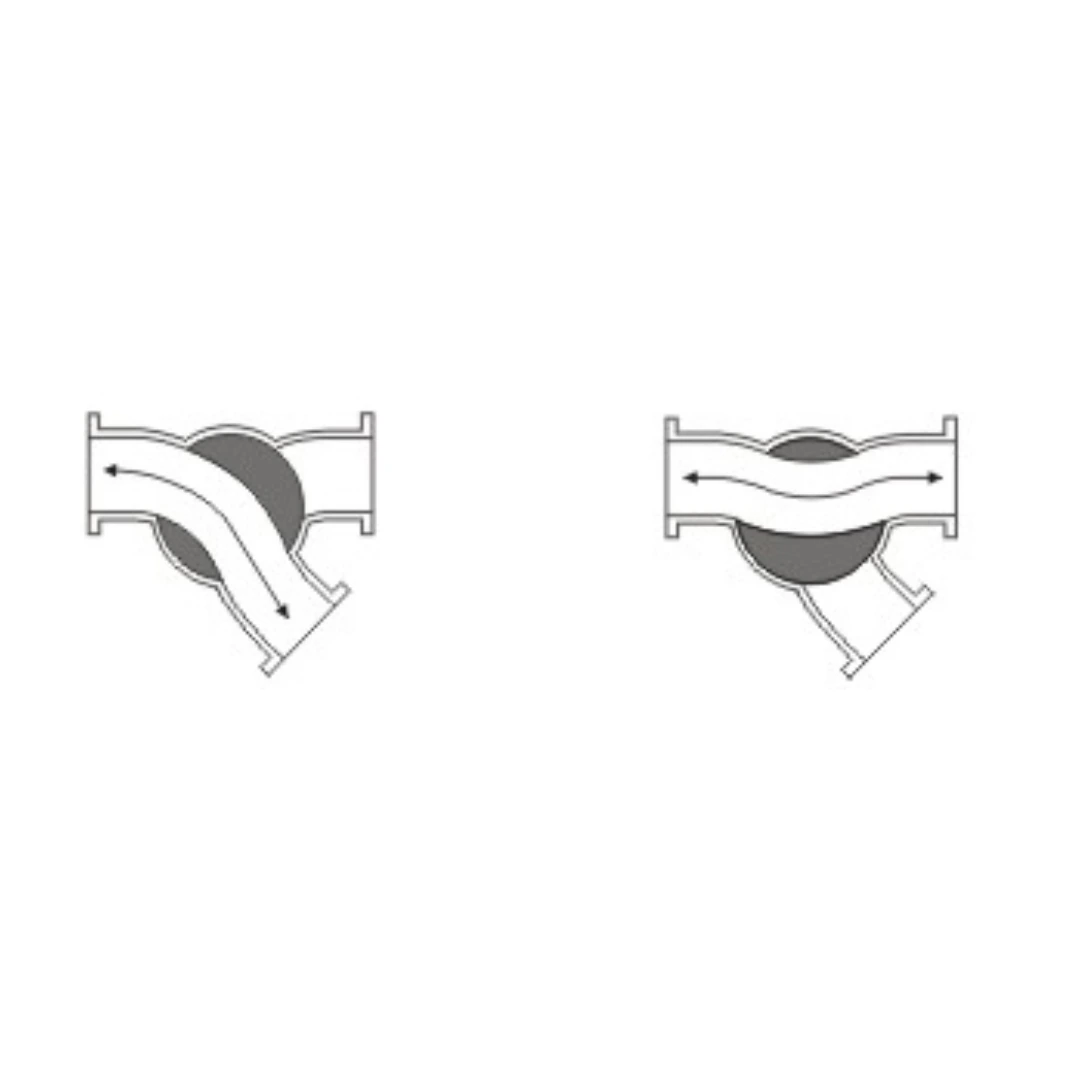

• Advanced Flow Design: Features an optional self-cleaning design where the runner has a 135-degree switch with flat flow, offering small resistance and strong circulation ability.
• Detention-Free Operation: Specially engineered to ensure the processed medium remains free of detention alongside achieving zero leakage performance.
• Flexible Actuation Capabilities: Managed by a choice of double acting or single acting (normally closed/normally open) pneumatic actuators.
• Extensive Component Options: Provides practical system additions including a solenoid valve, limit switch box, filter, E/P positioner, and hand wheel.
• Versatile Orientation: Offers configuration designs across both Y-port 120/135 ball types and body types.

Technical Specifications:

• Size Range: 2″ ~ 12″ Full Port
• Body Materials: WCB, SS304, SS316, SS316L
• Ball / Ball Core Materials: SS304+STL, SS316+STL
• Seat Materials: PTFE, metal hard seal+STL
• End Connections: ASME B16.34 class 150, ASME B16.34 class 300, DIN PN16, PN25, PN40, JIS 10K, 20K
• Pressure Ratings / Parameters: PN16, 1.6~4.0Mpa
• Medium Compatibility: Gas, Water and Oil, etc

Description Parameter Table

Dimensions Specifications Table
