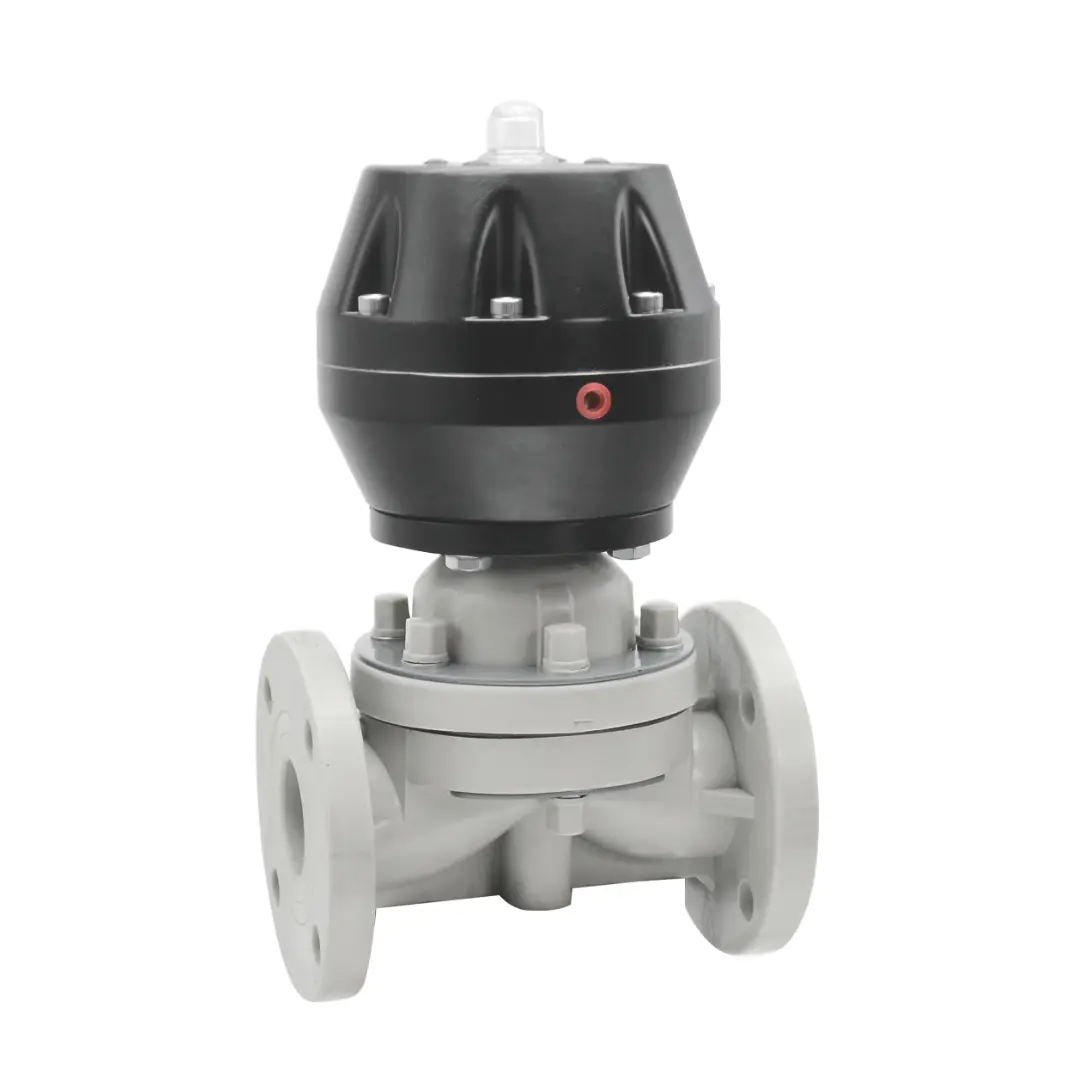

CPVC plastic pneumatic diaphragm valve

CPVC plastic pneumatic diaphragm valve

The CPVC plastic pneumatic diaphragm valve ARL-73 is a high-efficiency fluid control component engineered for specialized plastic piping applications. Offering versatile body configurations in UPVC, CPVC, or PVDF, this valve provides excellent material compatibility tailored to individual system requirements. The integrated pneumatic actuator supports multiple setup configurations, handling double acting, single acting normally closed, and single acting normally open system demands with ease. Utilizing durable flange end connections, the CPVC plastic pneumatic diaphragm valve ARL-73 interfaces cleanly with global engineering standards to secure long-term system reliability.

Key Features

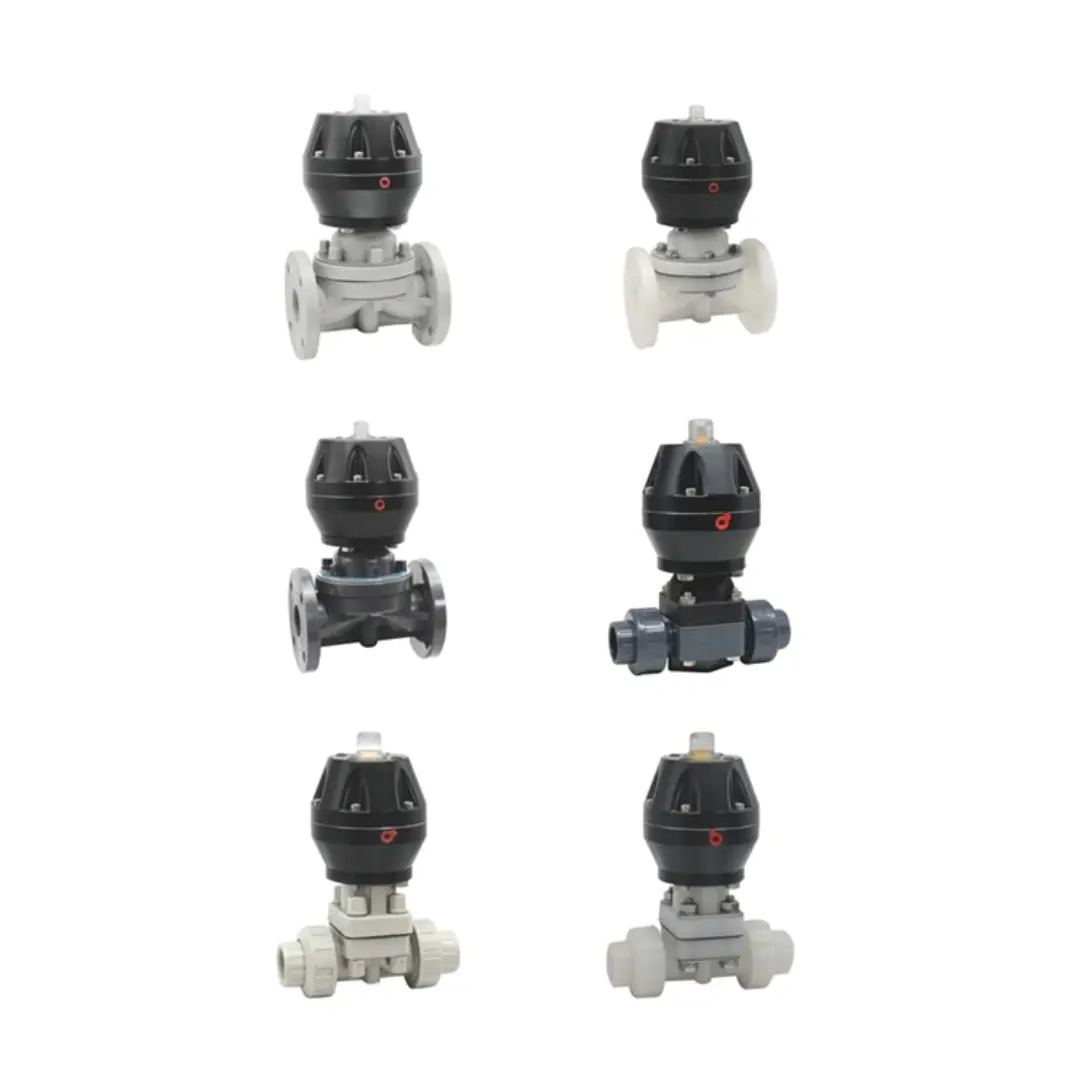

• Plastic Body Material Options: Available in high-durability UPVC, CPVC, and PVDF configurations.
• Premium Diaphragm Materials: Features specialized EPDM or EPDM+PTFE diaphragm components.
• Flexible Actuator Support: Accommodates double acting, single acting normally closed, and single acting normally open pneumatic operation modes.
• Standardized End Connections: Built with secure flange ends to facilitate clean pipeline installation.
• Multi-Standard Compliance: Aligns thoroughly with ASME B16.34 class 150/300, DIN PN16/PN20, and JIS 10K/20K engineering specifications.
• Pneumatic Accessory Compatibility: Ready for seamless integration with solenoid valves, limit switch boxes, filters, E/P positioners, and hand wheels.

Technical Specifications

• Size Range: 1/2″ – 10″ (15mm – 250mm)
• Pressure Supply: 5.5 bar
• Ends Design: Flange
• End Connection Classifications:

• • ASME B16.34 class 150, ASME B16.34 class 300

  • DIN PN16, PN20

  • JIS 10K, 20K

• Pneumatic Actuator Control: Double acting, Single acting (Normally closed, Normally open)
• Pneumatic Accessories Integration: Solenoid valve, limit switch box, filter, E/P positioner, hand wheel
