Pfa lined manual diaphragm valve

Pfa lined manual diaphragm valve

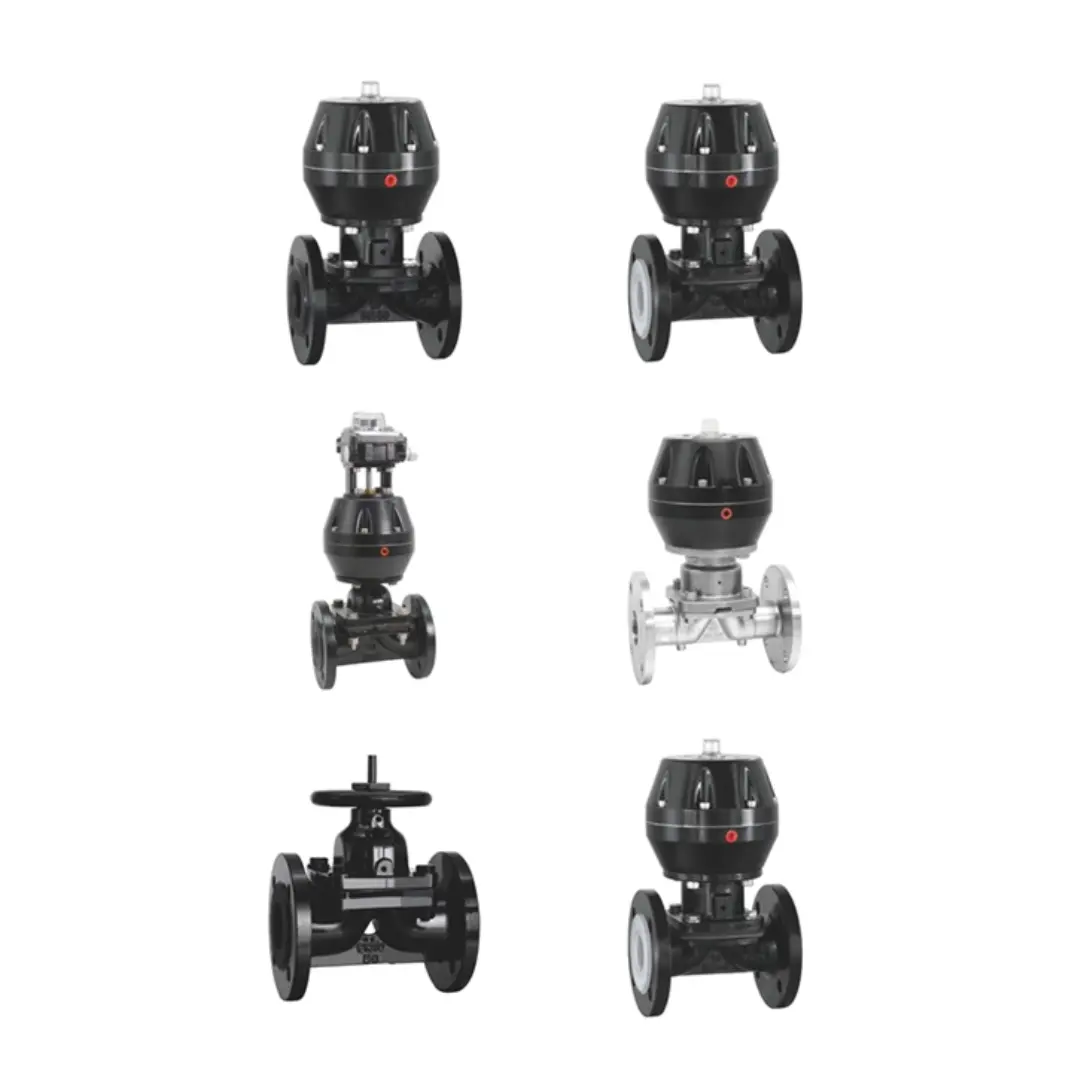

The Pfa lined manual diaphragm valve ARL-84 is a high-performance flow control solution designed to handle demanding industrial processes. Featuring a robust body construction available in WCB, SS316, or SS316L, this valve provides excellent strength and longevity in heavy-duty environments. It supports multiple actuation configurations including pneumatic, manual, and electric control methods to seamlessly match a variety of plant operational requirements. Engineered with standard flange ends, the Pfa lined manual diaphragm valve ARL-84 ensures steady, reliable sealing and integration into globally recognized industrial pipeline layouts.

Key Features

• Heavy-Duty Body Options: Manufactured with high-grade WCB, SS316, or SS316L material options.
• Resilient Diaphragm Sealing: Outfitted with premium EPDM or EPDM+PTFE diaphragm elements.
• Versatile Control Execution: Accommodates a wide array of system controls including pneumatic, manual, and electric options.
• Flexible Actuator Support: Pneumatic actuator setups support double acting, single acting normally closed, and single acting normally open methods.
• Standardized Pipeline Fitting: Engineered with integrated flange ends for safe and secure connection.
• Broad System Standards Compatibility: Designed to interface flawlessly with ASME B16.34 class 150/300, DIN PN16/PN20, and JIS 10K/20K engineering standards.
• Pneumatic Accessory Support: Readily interfaces with essential operational accessories like solenoid valves, limit switch boxes, filters, E/P positioners, and hand wheels.

Technical Specifications

• Size Range: 1/2″ – 10″ (15mm – 250mm)
• Pressure Supply: 5.5 bar
• Control Methods: Pneumatic, manual, electric
• Pneumatic Actuator Type: Double acting, Single acting (Normally closed, Normally open)
• Ends Connection Type: Flange
• End Connections Standards:

• • ASME B16.34 class 150, ASME B16.34 class 300

  • DIN PN16, PN20

  • JIS 10K, 20K

• Pneumatic Accessories Integration: Solenoid valve, limit switch box, filter, E/P positioner, hand wheel
